TSB W208PPB5 TSBW208PPB5

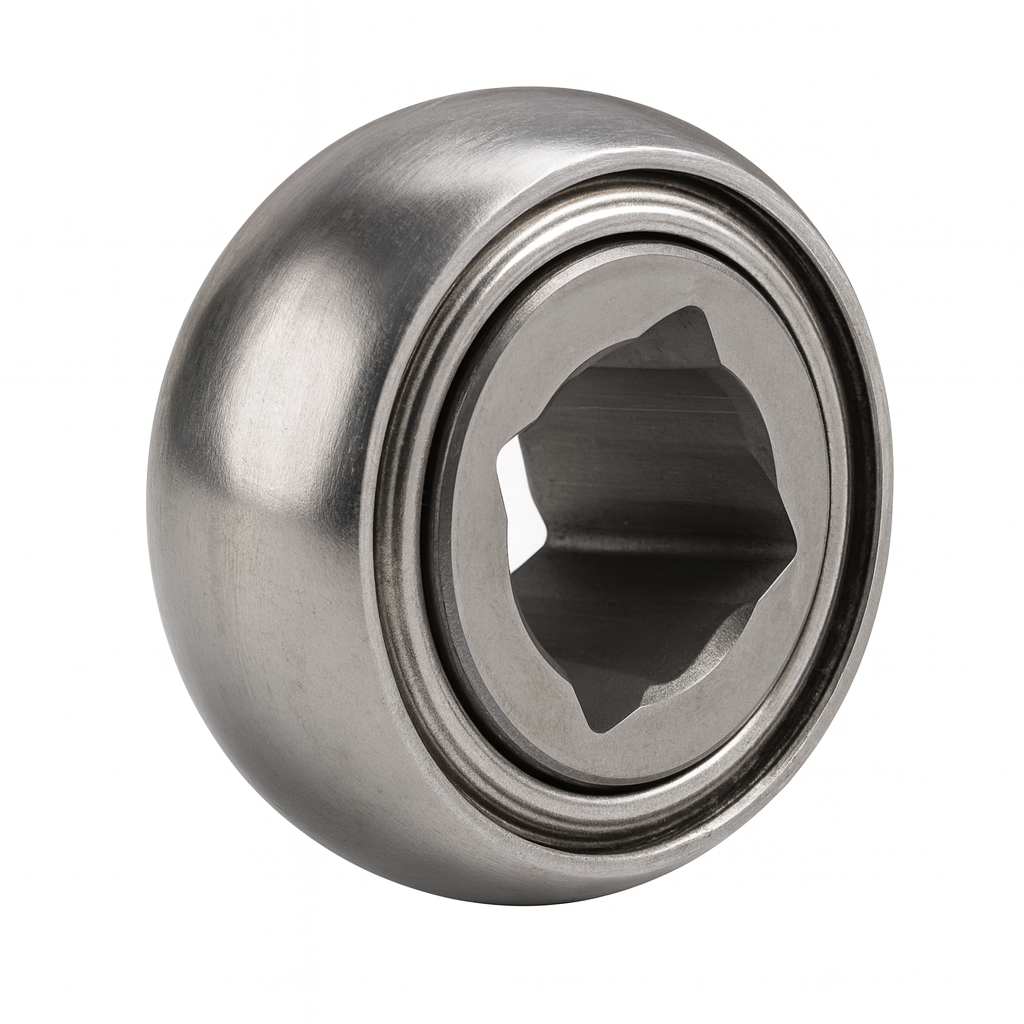

W208PPB5 is a heavy-duty agricultural disc-harrow insert bearing with a 1-1/8" square bore and 80 mm spherical OD. It’s factory-greased and double-sealed with tri-lip protection for dirt and moisture resistance, delivering long service life in harsh field conditions. Typical overall/outer widths are ~1.438" and ~18 mm.
- Manufacturer: Tri-State Bearing
- Brand Name: TSB
- Part Number: TSBW208PPB5
- MPN: W208PPB5
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
| Bearing Material | : | High-carbon chromium steel |
| Bore Diameter | : | 1.125 in |
| Cage Material | : | Steel |
| Maximum Speed | : | 3000 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 80 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | 200 |
| Temperature Rating | : | −20 to +120 Cel |
| Width | : | 1.438 in |
- Bore: 1-1/8" square (≈28.575 mm)
- Outside diameter: 80 mm (spherical OD)
- Inner ring width: ~1.438" (≈36.5 mm)
- Outer ring width: ~18 mm (≈0.709")
- Seals: Double sealed, tri-lip/“PPB” style
- Pre-lubricated: Yes (non-relubricable variants common)
- Application: Disc harrows and other ag implements
- Interchange (examples): DS208TT5, 1AS08-1-1/8
