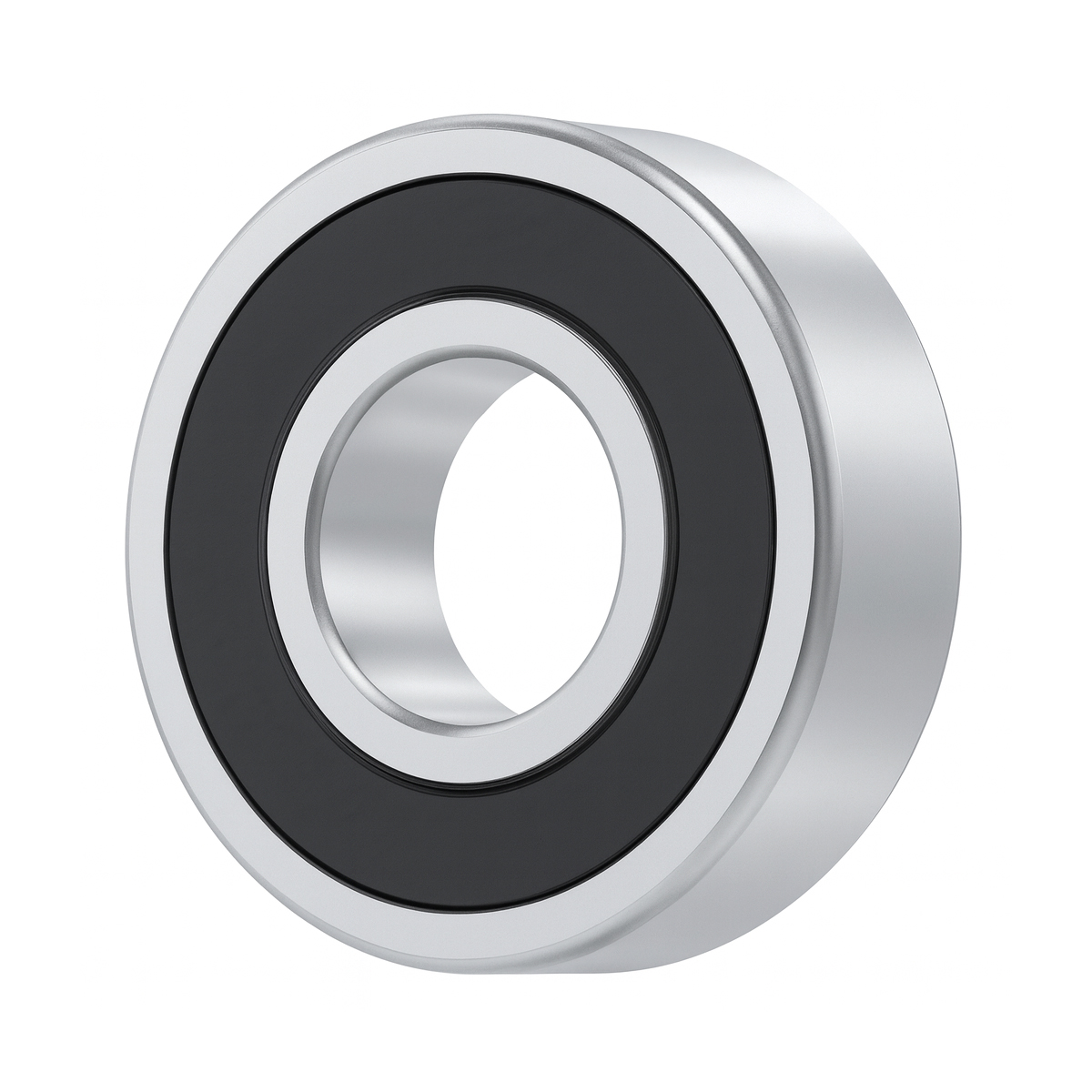

TSB TSBZ9504RST
Special ag radial/deep-groove ball bearing — 3/4″ ID × 1.7805″ OD × 0.610″ W; straight bore; double sealed; no snap ring.
- Manufacturer: Tri-State Bearing
- Brand Name: TSB
- Part Number: TSBZ9504RST
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/pc
-
Price:
This special-dimension agricultural radial (deep-groove) ball bearing features a straight 3/4-inch bore, 1.7805-inch outside diameter, and 0.610-inch overall width. It uses double seals to retain lubricant and block contaminants, and it’s supplied without a snap ring for straightforward drop-in replacement on many mower decks and ag implements. Always verify fit against the original part and housing.
| Bore Diameter | : | 0.7500 in |
| Closure Type | : | Sealed |
| Load Capacity | : | 2,200 lbf Dynamic / 1,400 lbf Static |
| Number of Rows | : | 1 |
| Outside Diameter | : | 1.7805 in |
| Seal Material | : | Rubber |
| Series | : | 204 |
| Type | : | Radial |
| Width | : | 0.6100 in |
- Special ag replacement size for common mower/implement applications
- Dimensions: 0.7500 in ID × 1.7805 in OD × 0.6100 in width
- Straight bore for standard shaft fit
- Double sealed to keep grease in and contaminants out
