TSB TSBY0125
  1. pin-int

TSB TSBY0125

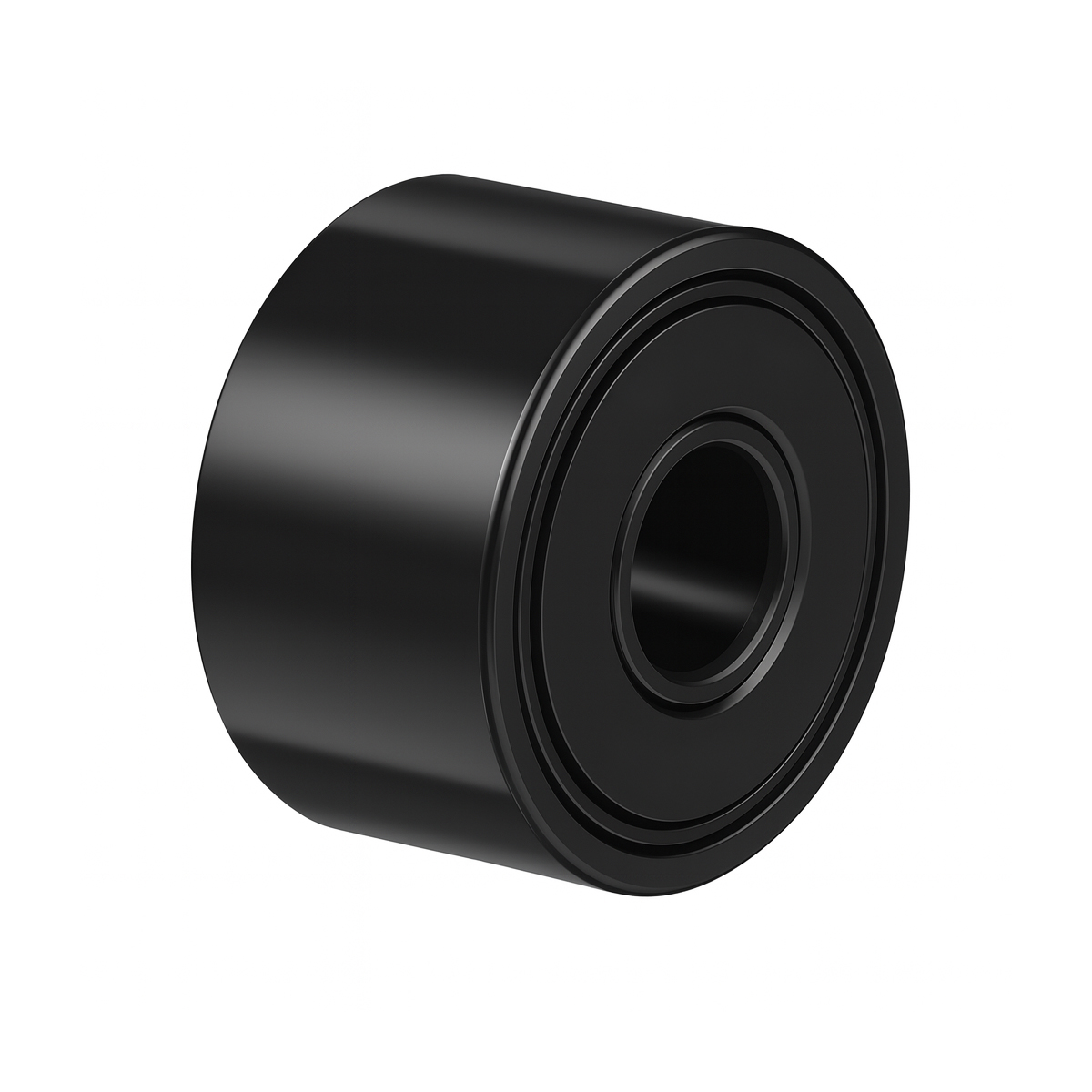

Cylindrical sealed yoke roller — 0.750 in OD × 0.500 in width; 0.250 in bore; overall width 0.5625 in; static load ~4,130 lbf; dynamic rating ~1,660 lbf.

  • Manufacturer: Tri-State Bearing
  • Brand Name: TSB
  • Part Number: TSBY0125
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

This sealed cylindrical yoke roller provides durable performance in applications needing radial rollers with high static load support. The roller has a 0.750 inch outside diameter and 0.500 inch width, with a 0.250 inch bore. Overall width measures 0.5625 inch. It is fitted with oil hole(diameter 3/32 in) and designed to fit shafts via push-fit, drive-fit, or press-fit tolerances at ~0.250 in depending on the fit type. The maximum static capacity is 4,130 pounds-force and the basic dynamic rating is 1,660 pounds-force. It supports up to 6,400 RPM in optimal conditions.

  • Sealed cylindrical yoke roller for smooth, low-friction track guidance
  • 0.750 in roller OD × 0.500 in roller width; 0.250 in bore; overall width 0.5625 in
  • Relubricatable design with 3/32 in oil hole; multiple shaft fit options (push/drive/press)
  • High load capability: ~4,130 lbf max static; ~1,660 lbf basic dynamic
  • Limiting speed up to 6,400 RPM (application & lubrication dependent)
  • Through-hardened bearing steel construction; sealed to retain grease and resist contamination
  • Ideal for conveyors, cam/track systems, material handling, and linear motion carriages
