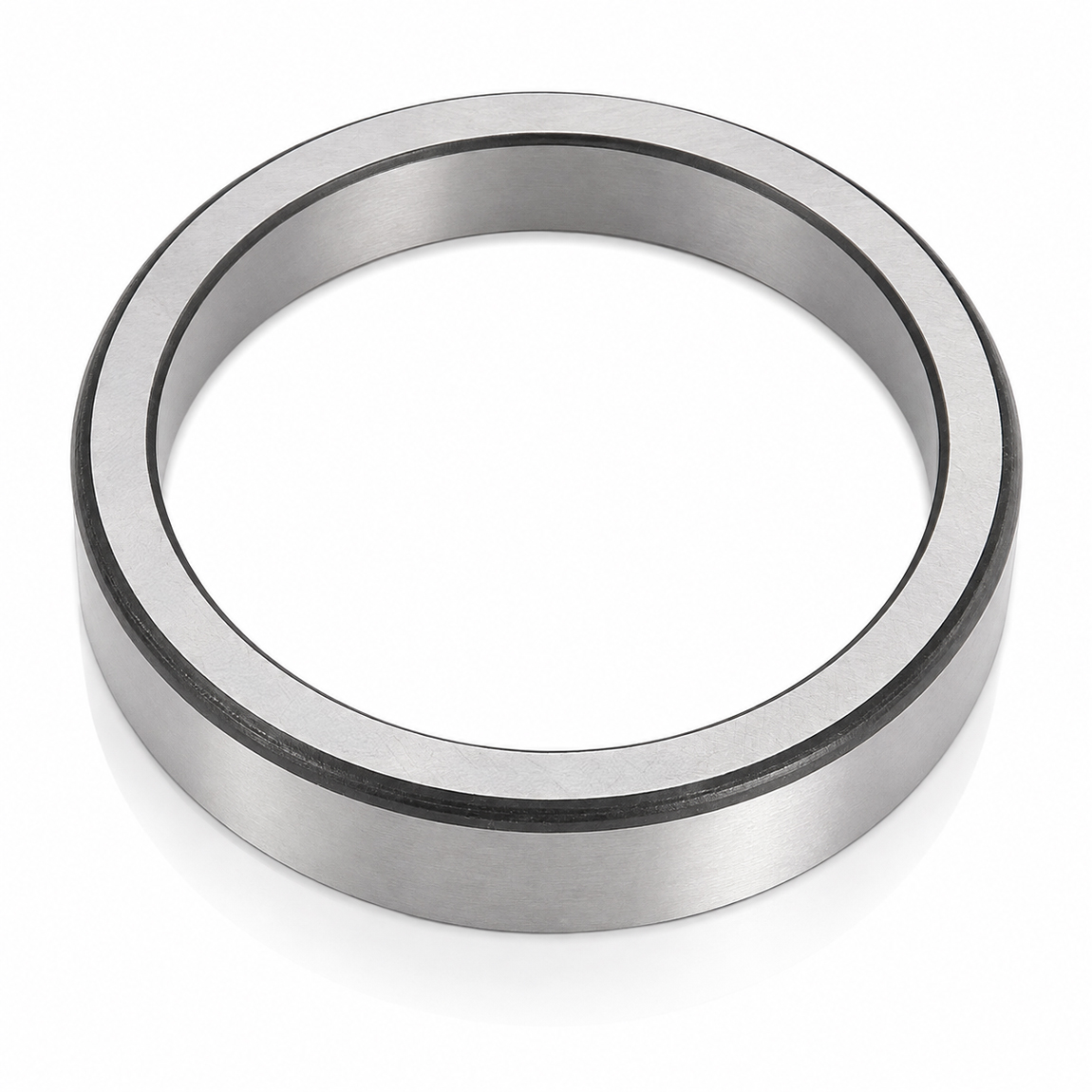

TSB 64700 single tapered roller bearing cup featuring a 7 inch outside diameter and 1-3/16 inch cup width. This 64000-series outer ring is designed for use with compatible tapered roller bearing cones, including the 64450.
The TSB 64700 is a single tapered roller bearing cup designed for use with compatible 64000-series tapered roller bearing cones. This inch-series cup features a 7 inch outside diameter and 1-3/16 inch outer ring width and is manufactured to standard 64700 dimensional specifications.
The 64700 forms the outer ring and tapered raceway of a tapered roller bearing assembly. When paired with a compatible cone, such as the 64450, the components create a complete single-row tapered roller bearing capable of supporting combined radial and thrust loading.
TSB-branded bearings provide a dependable replacement option for industrial machinery, power transmission equipment and other applications requiring the standard dimensions of a 64700 tapered roller bearing cup.
| Cup Width | : | 1.1875 in |
| Maximum House Fillet Radius | : | 0.13 in |
| Outside Diameter | : | 7 in |
| Series | : | 64000 |
| Type | : | Single Cup |
- Single tapered roller bearing cup
- Standard 64700 industry designation
- 7 in outside diameter
- 1-3/16 in cup width
- 64000 series
- Outer ring component of a tapered roller bearing assembly
- Designed for use with compatible 64000-series tapered roller bearing cones
- Compatible with 64450 tapered roller bearing cone
- Supports combined radial and thrust loading when assembled with a compatible cone
- Inch-dimension design
- TSB-branded white-label replacement bearing
