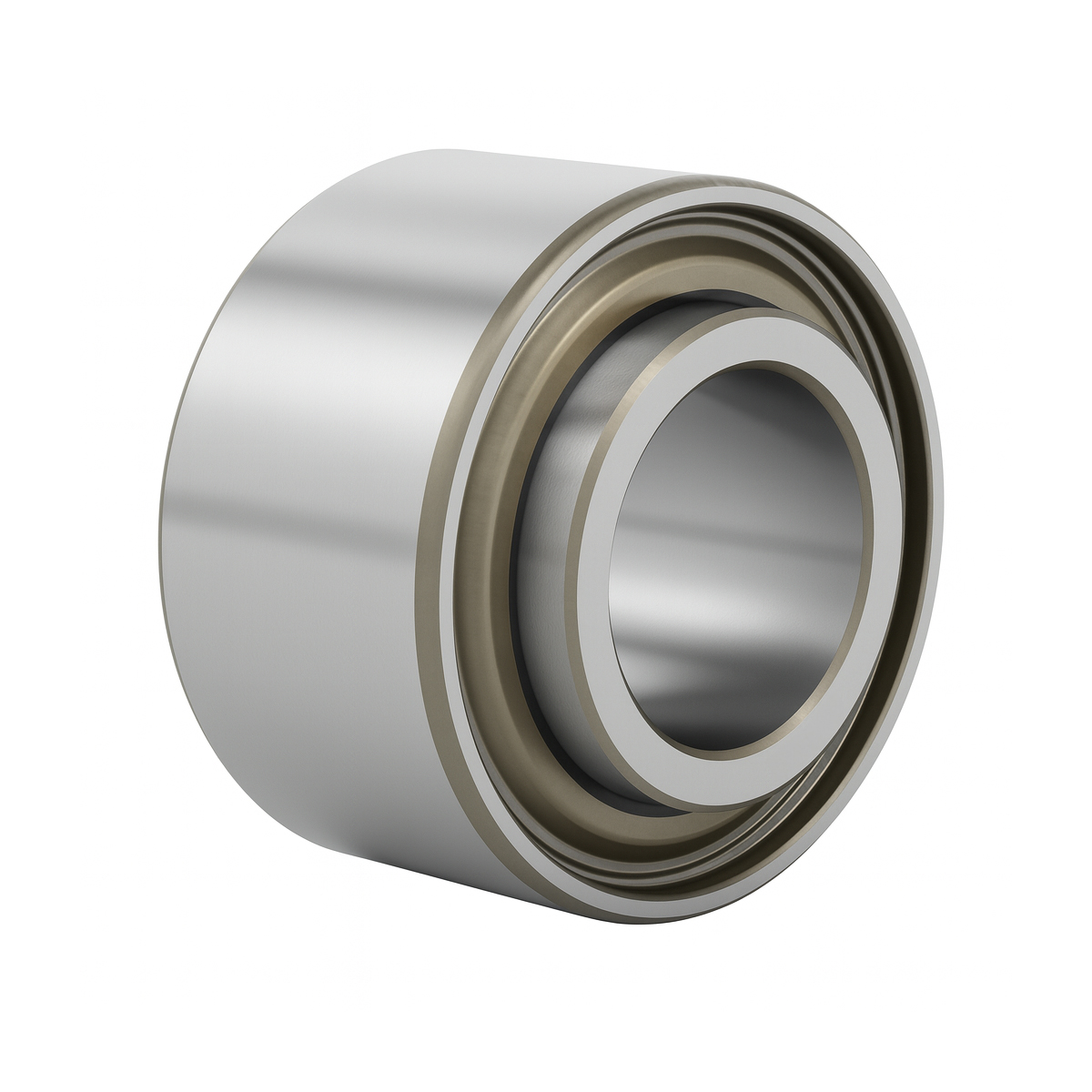

TSB 5206KPP3 TSB5206KPP3

The 5206KPP3 angular contact bearing is engineered for demanding, high-contamination environments like agriculture and industrial machinery. Built with SAE 52100 steel, it features open construction with no snap ring and a 25° contact angle to handle combined radial and thrust loads. Internal clearance is C3, providing extra room under thermal expansion. Its bore is 1.1870 in, outer diameter 2.4409 in, and it’s 1.9690 in wide overall. Designed for robust performance, particularly where dust, dirt, or debris are present, this bearing can operate reliably when paired with proper lubrication and maintenance.

• Angular contact geometry with 25° contact angle for combined radial and axial load support
• Open design (without snap ring) for easier maintenance and inspection
• Internal clearance: C3 for thermal expansion and better running under variable temperatures
• High-strength rings and rolling elements in SAE 52100 hardened steel
• Bore × OD × Width: 1.1870 in × 2.4409 in × 1.9690 in
• Double-row, non-fill slot / “row type fill slot: double row non-fill slot” construction
• Uncoated finish for applications where coatings may interfere or degrade
• Precision class ABEC-1
• Designed for agriculture and heavily contaminated areas where durability & clearance are critical
