TSB 14585 TSB14585
  1. pin-int

TSB 14585 TSB14585

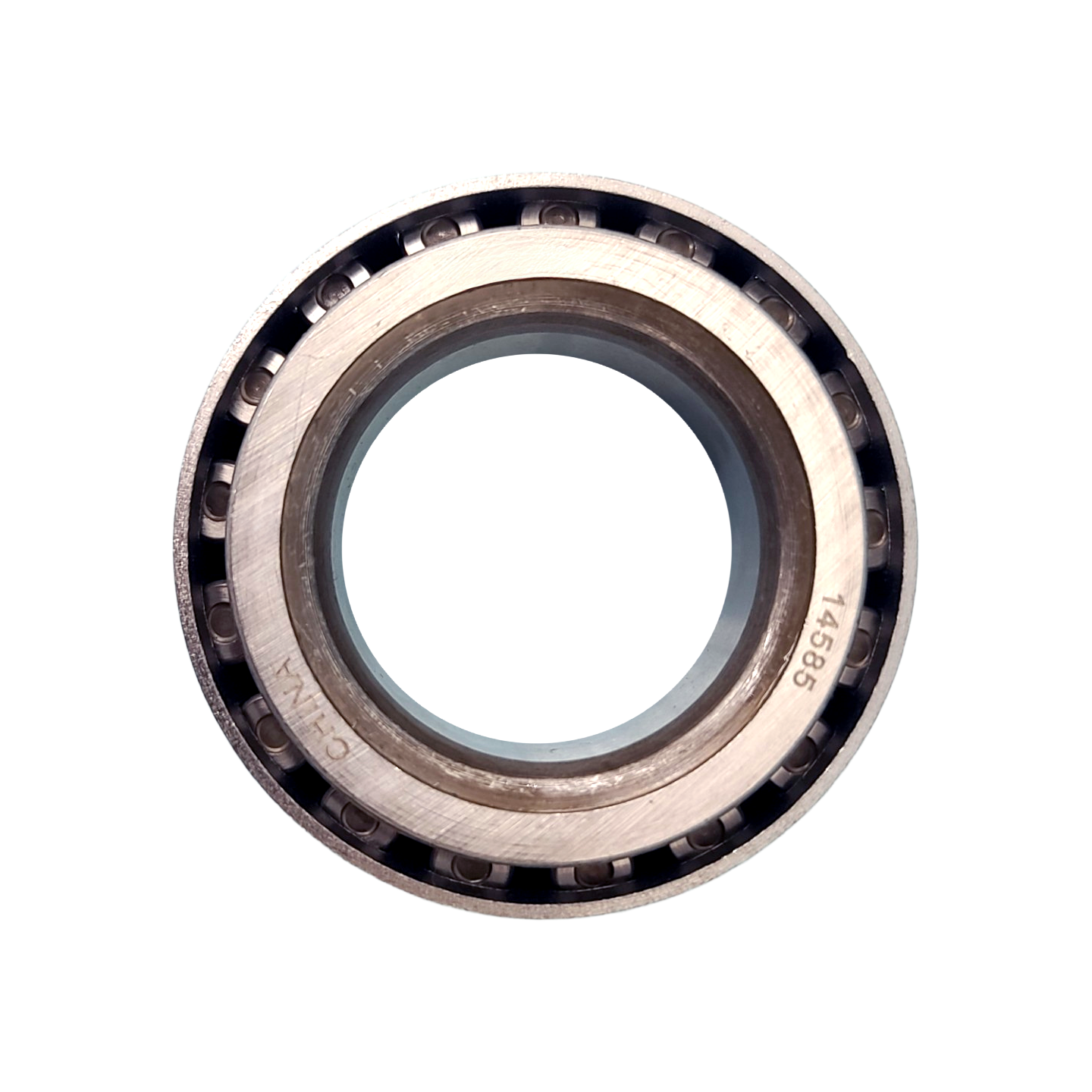

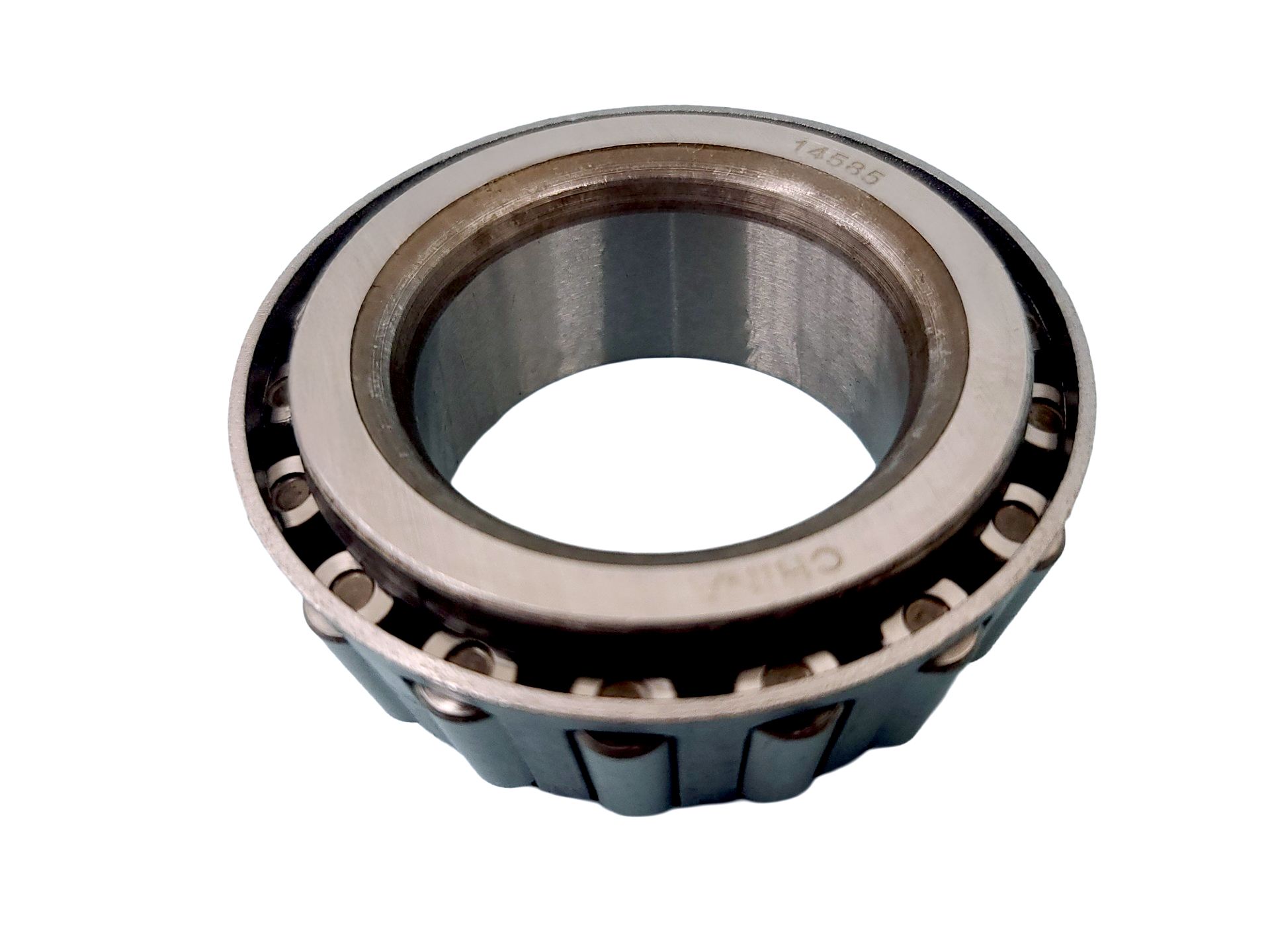

TSB14585 14500 Type TS Tapered Roller Bearing Cone, 1-3/8 in Dia Bore, 13/16 in W Cone, 0.14 in Max Shaft Fillet Radius, 13300 lb Dynamic/15300 lb Static Load

  • Manufacturer: Tri-State Bearing
  • Brand Name: TSB
  • Part Number: TSB14585
  • MPN: 14585
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

TSB14585 , Tapered Roller Bearing Cone, Type TS, Series: 14500, 1-3/8 in Bore, 13/16 in Cone Width, 0.14 in Maximum Shaft Fillet Radius, 13300 lb Dynamic/15300 lb Static Load, Steel Cage, 176 to 203 deg F, Uncoated

Bore Diameter      :      1-3/8 in
Cage Material      :      Steel
Cone Width      :      13/16 in
Finish      :      Uncoated
Load Capacity      :      13300 lb Dynamic/15300 lb Static
Maximum Shaft Fillet Radius      :      0.14 in
Series      :      14500
Temperature Rating      :      176 to 203 deg F
Type      :      Type TS
  • Single cone
  • One-piece pressed steel cage retains rollers on the cone and spaces them evenly
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_2720_20024_Catalog.pdf
