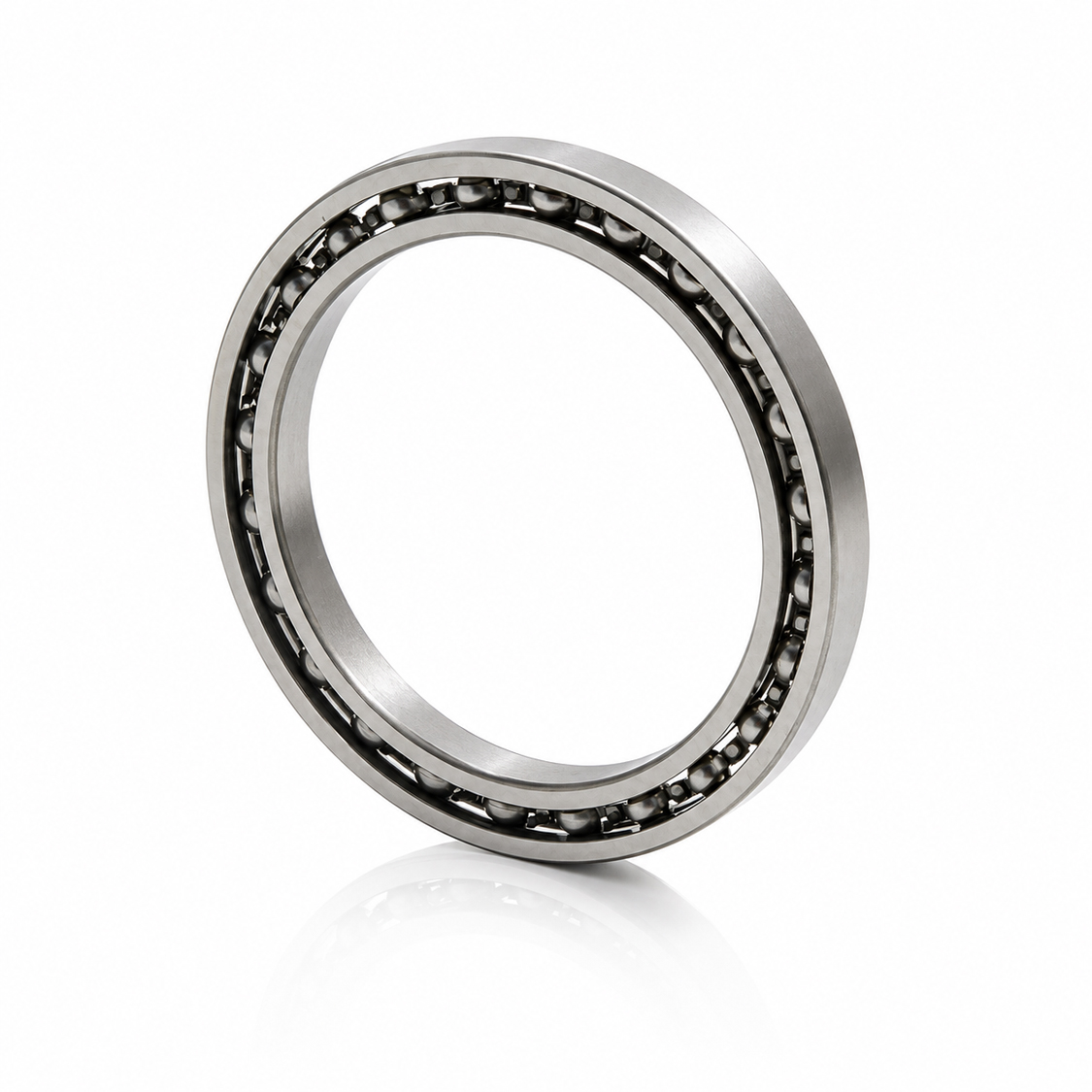

TRITAN® 61906 BEA61906
TRITAN® 61906 61900 Series Thin Section Radial Deep Groove Ball Bearing, 30 mm Dia Bore, 47 mm OD, 1 Rows, 9 mm W, 1630 lb Load
- Manufacturer: Solve Industrial Motion Group
- Brand Name: TRITAN®
- Part Number: BEA61906
- MPN: 61906
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
These are the most common and versatile bearings. Produced with metric dimensions, their simple non-separable design allows for use a wide variety of applications requiring little maintenance. The available sizes are sorted and listed by the bore dimensions and include dimensional and performance data for various common configurations including open, double sealed (2RS), double shielded (ZZ) and with snap ring (NR). Other configurations are also available.
TRITAN® Radial Deep Groove Ball Bearing, Thin Section, Series: 61900 Series, 30 mm Bore, 47 mm OD, 1 Rows, 9 mm Width, 1630 lb Load, 52100 Steel Bearing, Steel Cage, 13000 rpm Grease/17000 rpm Oil Maximum
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 30 mm |
| Cage Material | : | Steel |
| Load Capacity | : | 1630 lb |
| Maximum Speed | : | 13000 rpm Grease/17000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 47 mm |
| Series | : | 61900 Series |
| Type | : | Thin Section |
| Width | : | 9 mm |
- 1630 lb dynamic/1130 lb static load
