Timken® VHIN101US-2 TIMVHIN101US
  1. pin-int

Timken® VHIN101US-2 TIMVHIN101US

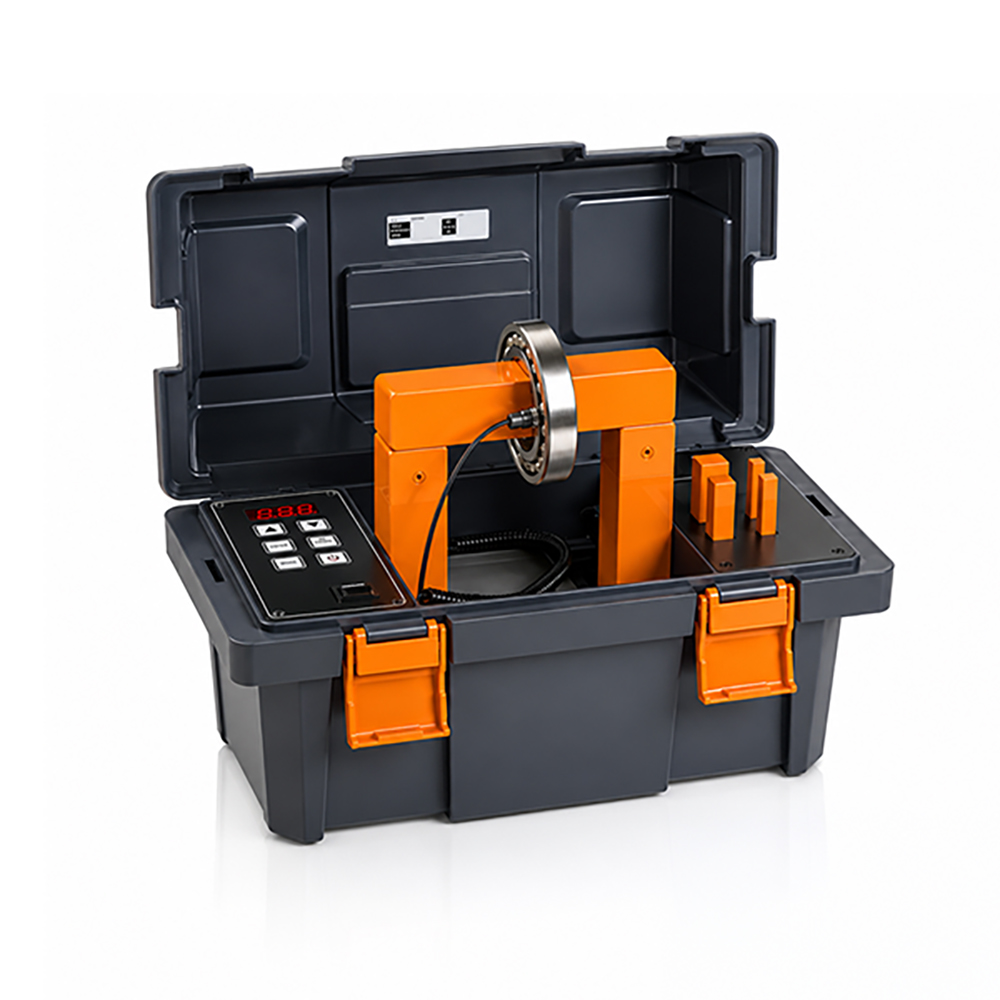

Timken® VHIN101US-2 Induction Bearing Heater, 8.3 in OD Bearing, 4.8 in W Bearing, 120 VAC, 3.6 kVA Power Rating

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIMVHIN101US
  • MPN: VHIN101US-2
  • UPC: 053893528175
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Timken® Bearing Heater, Induction, 8.3 in Bearing Maximum Outside Diameter, 4.8 in Bearing Width, 33.1 lb Bearing Maximum Weight, 120 VAC, 15 A, 3.6 kVA Power, 50/60 Hz Frequency, 302 deg F Maximum, 18.1 x 9.45 x 11.02 in Dimensions

Amperage Rating      :      15 A
Bearing Maximum Outside Diameter      :      8.3 in
Bearing Maximum Weight      :      33.1 lb
Bearing Width      :      4.8 in
Dimensions      :      18.1 x 9.45 x 11.02 in
Frequency Rating      :      50/60 Hz
Maximum Temperature      :      302 deg F
Power Rating      :      3.6 kVA
Type      :      Induction
Voltage Rating      :      120 VAC
  • Safe - heater automatically selects the most effective power setting to ensure optimal and balanced heating
  • Microprocessor controlled
  • Temperature and time control
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_VHIN101US_2_Specification_Sheet.pdf
