Timken® UCT208 TIMUCT208

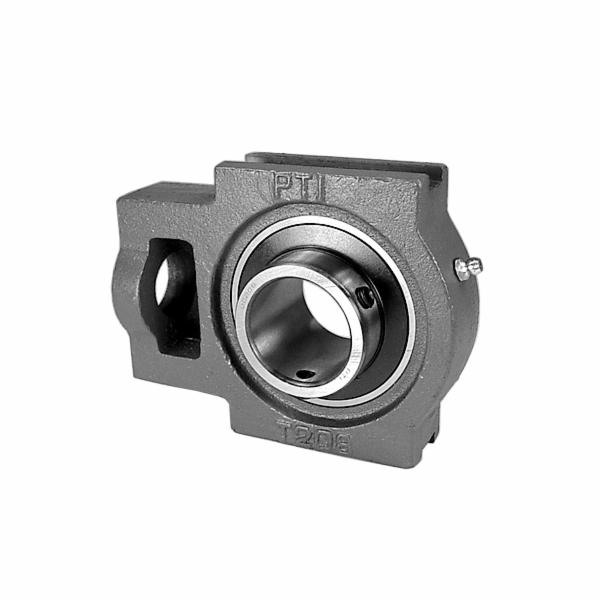

Timken® UCT208 UCT200 Standard Industrial Duty Non-Expansion Take-Up Ball Bearing Unit, 40 mm Dia Bore, 144 mm L x 30.4 mm W x 114 mm H, 29.1 lb Dynamic/17.8 lb Static Load
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIMUCT208
- MPN: UCT208
- UPC: 087796077782
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Timken® U Series UC200 mounted ball bearings housed units feature Timken® U Series set screw locking style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.
Timken®, UCT208, Take-Up Ball Bearing Unit, Standard Industrial Duty Non-Expansion, Series: UCT200, 40 mm Bore, 144 mm Length, 30.4 mm Width, 114 mm Height, 29.1 lb Dynamic/17.8 lb Static Load, Steel Bearing, 32 to 104 deg F, Powder Coated
| Bearing Material | : | Steel |
| Bore Diameter | : | 40 mm |
| Finish | : | Powder Coated |
| Height | : | 114 mm |
| Length | : | 144 mm |
| Load Capacity | : | 29.1 lb Dynamic/17.8 lb Static |
| Series | : | UCT200 |
| Temperature Rating | : | 32 to 104 deg F |
| Type | : | Standard Industrial Duty Non-Expansion |
| Width | : | 30.4 mm |
- Suggested for industrial applications where normal loads are encountered
- UCT take-up units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications
- Units provide compact, efficient supports for adjustable shafts and conveyor take-up pulleys
- Comes assembled and ready for mounting
- Use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
- UCT take-up units are suggested for industrial applications where normal loads are encountered
- These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys
- Each unit comes assembled and ready for mounting
- These units use wide inner ring ball bearings with self aligning spherical outside diameters that compensate for shaft misalignment
- Bearing prelubricated and ready for immediate installation
- Grease fitting supplied for relubrication
- The bonded seal design is well suited for industrial applications involving wet or dirty environments
- Slot spacing and width are interchangeable with competitive units
- Housing designed for ease of bearing replacement
- Standard industrial set screw locking mechanism
- 4-bolt square flange mounting
- Cylindrical bore, single row and open end
