Timken® UCFL206-20 TIMUCFL206-20
  1. pin-int

Timken® UCFL206-20 TIMUCFL206-20

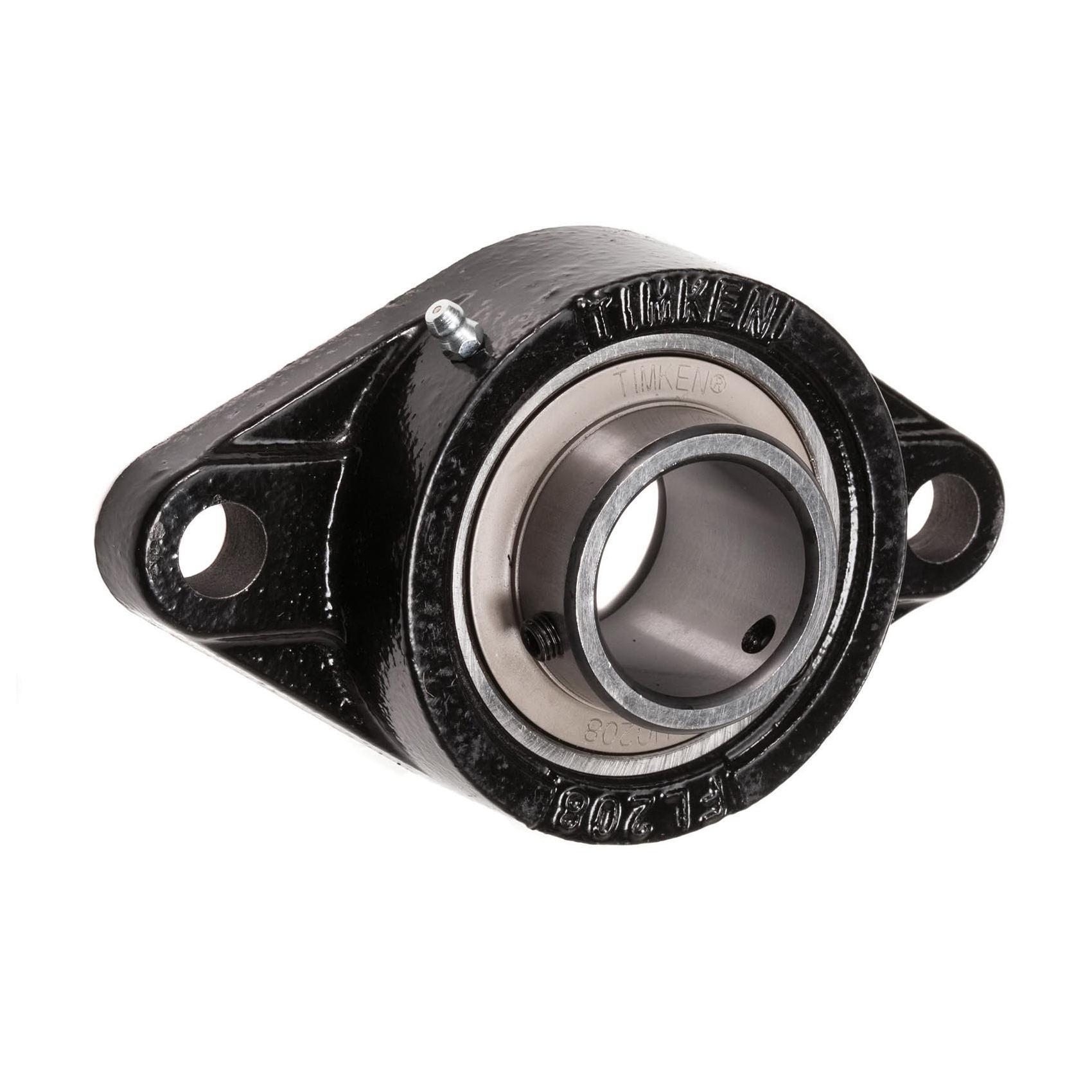

Timken® UCFL206-20 UCFL200 Standard-Duty Non-Expansion Flange Mount Ball Bearing Unit, 1-1/4 in Dia Bore, 4-39/64 in L Bolt Center-to-Center, 0.625 in Dia Bolt Circle, 2-Bolt Flange Mount, 3-5/32 in OAL/Dia

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIMUCFL206-20
  • MPN: UCFL206-20
  • UPC: 087796078512
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Timken® U Series UC200 mounted ball bearings housed units feature Timken® U Series set screw locking style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.

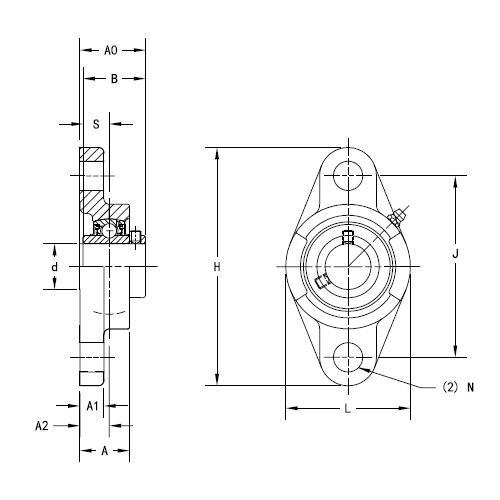

Timken®, UCFL206-20, Flange Mount Ball Bearing Unit, Standard-Duty Non-Expansion, Series: UCFL200, 1-1/4 in Bore, 4-39/64 in Bolt Center-to-Center Length, 0.625 in Diameter Bolt Circle, 2-Bolt Flange Mounting, 3-5/32 in Overall Length/Diameter, 1-37/64 in Overall Depth, 5-13/16 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 19.5 lb Dynamic/11.3 lb Static Load, 4300 rpm Maximum, 250 deg F, Powder Coated

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      4-39/64 in
Bolt Circle Diameter      :      0.625 in
Bore Diameter      :      1-1/4 in
Finish      :      Powder Coated
Flange Mounting Type      :      2-Bolt
Load Capacity      :      19.5 lb Dynamic/11.3 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      4300 rpm
Overall Depth      :      1-37/64 in
Overall Height      :      5-13/16 in
Overall Length/Diameter      :      3-5/32 in
Seal Material      :      Nitrile Rubber
Series      :      UCFL200
Temperature Rating      :      250 deg F
Type      :      Standard-Duty Non-Expansion
  • Suggested for industrial applications where normal loads are encountered
  • Primarily designed for applications where the mounting area is restricted
  • Unit comes assembled and ready for mounting, using bolts through the flange
  • Use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
  • Timken® UCFL series housed units feature the Timken® set screw locking (UC) bearing insert
  • Bearing prelubricated and ready for immediate installation
  • Grease fitting supplied for relubrication
  • The bonded seal design is well suited for applications involving wet or dirty environments
  • Bolt hole spacing dimensions and shaft center location are interchangeable with competitive units
  • Housing designed for ease of bearing replacement
  • Cast iron housing
  • Triple-lip bonded seal with flinger
  • CN internal clearance
  • Cylindrical bore single row bearing
  • Open end type
  • Spherical outer diameter
  • 1/2 in bolt
