Timken® UC209 TIMUC209
  1. pin-int

Timken® UC209 TIMUC209

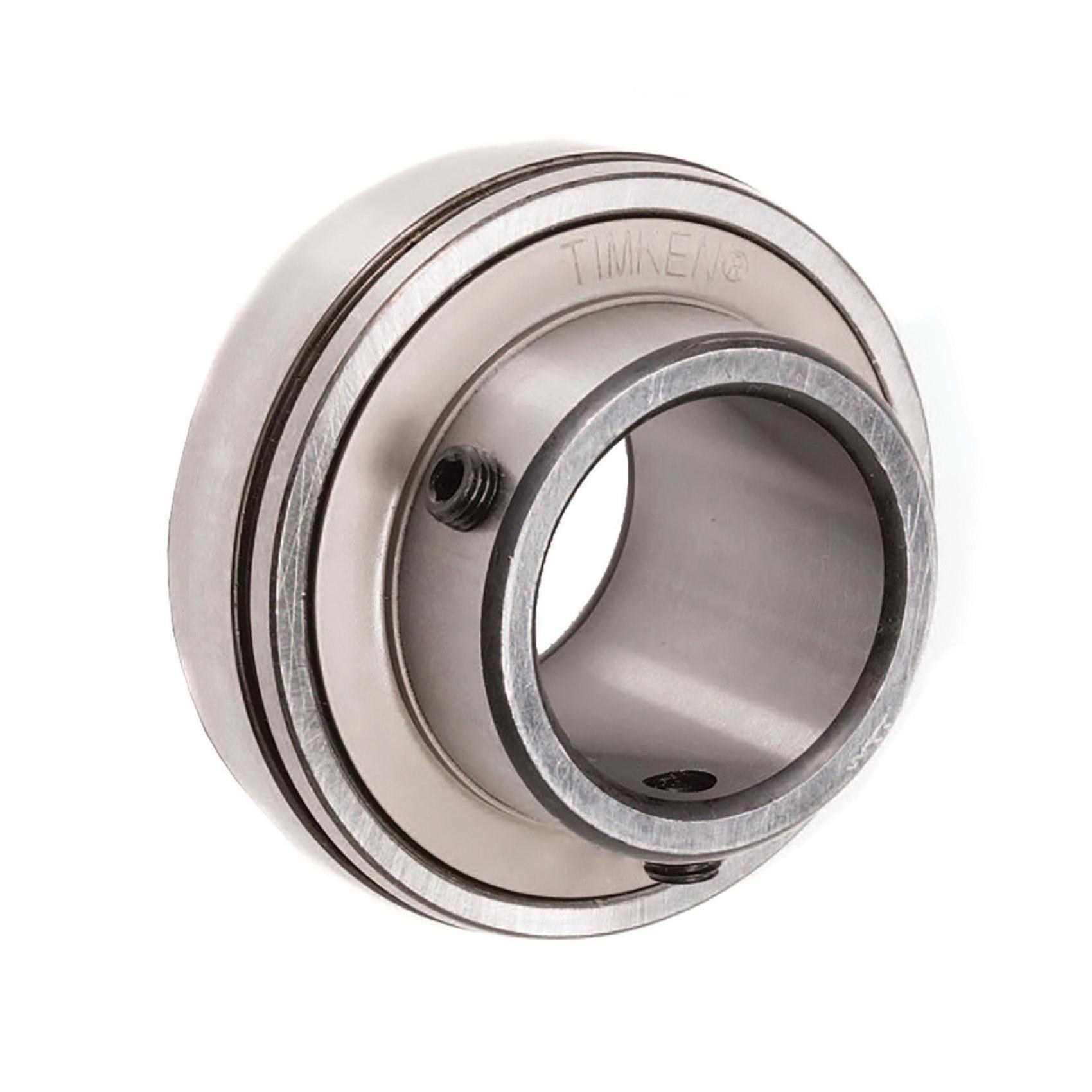

Timken® UC209 UC 200 Industrial Duty Standard Ball Insert Bearing Housed Unit, 45 mm Dia Bore, 85 mm Dia Outside, 1 Rows, 49.5 mm W, 34.1 lb Dynamic/21.3 lb Static Load

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIMUC209
  • MPN: UC209
  • UPC: 087796069695
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Timken® U Series UC200 mounted ball bearings housed units feature Timken® U Series set screw locking style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.

Timken®, UC209, Ball Insert Bearing Housed Unit, Industrial Duty Standard, Series: UC 200, 45 mm Bore, 85 mm OD, 1 Rows, 49.5 mm Width, Open Closure, 34.1 lb Dynamic/21.3 lb Static Load, Steel Bearing, Nitrile Rubber Seal, 3100 rpm Grease/Oil Maximum, 0 to 40 deg C, Powder Coated

Bearing Material      :      Steel
Bore Diameter      :      45 mm
Cage Material      :      Steel
Closure Type      :      Open
Finish      :      Powder Coated
Load Capacity      :      34.1 lb Dynamic/21.3 lb Static
Maximum Speed      :      3100 rpm Grease/Oil
Number of Rows      :      1
Outside Diameter      :      85 mm
Seal Material      :      Nitrile Rubber
Series      :      UC 200
Temperature Rating      :      0 to 40 deg C
Type      :      Industrial Duty Standard
Width      :      49.5 mm
  • Suggested for industrial applications where normal loads are encountered
  • The set screw mounting feature is ideal for reversing load applications
  • Prelubricated and ready for immediate installation
  • Wide inner ring provides effective shaft support for a broad range of industrial applications
  • UC series features super finished raceways, grade 10 balls for smooth running and low noise operation
  • UC series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical inside surfaces to compensate for shaft misalignment
  • Set screw locking
  • Cast iron housing
  • Spherical outer diameter
  • Cylindrical bore, non-expansion and open end type
  • Triple-lip bonded nitrile rubber seal with flinger
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_UC206_Catalog.pdf
