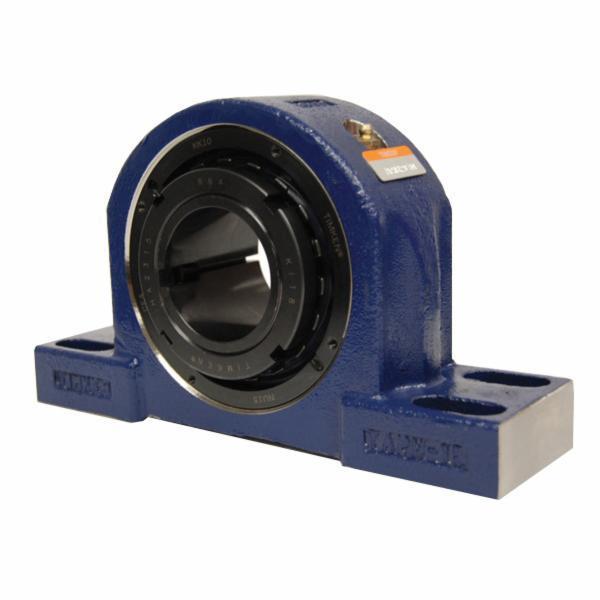

Timken® TAPH22K315SO QMBTAPH22K315SO
Timken® TAPH22K315SO TA/DV Series SAF Style Solid Block Spherical Roller Bearing Housed Unit, 3-15/16 in Dia Bore, 11.88 to 14.5 in L Bolt Center-to-Center, 4.94 in Base to Bore Centerline, 16 in OAL x 9.38 in OAH
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: QMBTAPH22K315SO
- MPN: TAPH22K315SO
- UPC: 883450276092
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Timken®, TAPH22K315SO, Spherical Roller Bearing Housed Unit, SAF Style Solid Block, Series: TA/DV Series, 3-15/16 in Bore, 11.88 to 14.5 in Bolt Center-to-Center Length, 4.94 in Base to Bore Centerline, 16 in Overall Length, 4.86 in Overall Width, 9.38 in Overall Height, Four-Bolt Base Mounting, Cylindrical Bore, 4-3/4 in Base Width, Tapered Adapter Locking Device, O Seal, Non-Expansion (Fixed), 125000 lb Dynamic/147000 lb Static Load, 600 rpm Grease/Oil Maximum, Cast Steel
| Base Width | : | 4.75 in |
| Base to Bore Centerline | : | 4.94 in |
| Bolt Center-to-Center Length | : | 11.88 to 14.5 in |
| Bore Diameter | : | 3-15/16 in |
| Bore Type | : | Cylindrical |
| Expansion Type | : | Non-Expansion (Fixed) |
| Load Capacity | : | 125000 lb Dynamic/147000 lb Static |
| Locking Device | : | Tapered Adapter |
| Material | : | Cast Steel |
| Maximum Speed | : | 600 rpm Grease/Oil |
| Mounting Type | : | Four-Bolt Base |
| Overall Height | : | 9.38 in |
| Overall Length | : | 16 in |
| Overall Width | : | 4.86 in |
| Seal Type | : | O Seal |
| Series | : | TA/DV Series |
| Type | : | SAF Style Solid Block |
