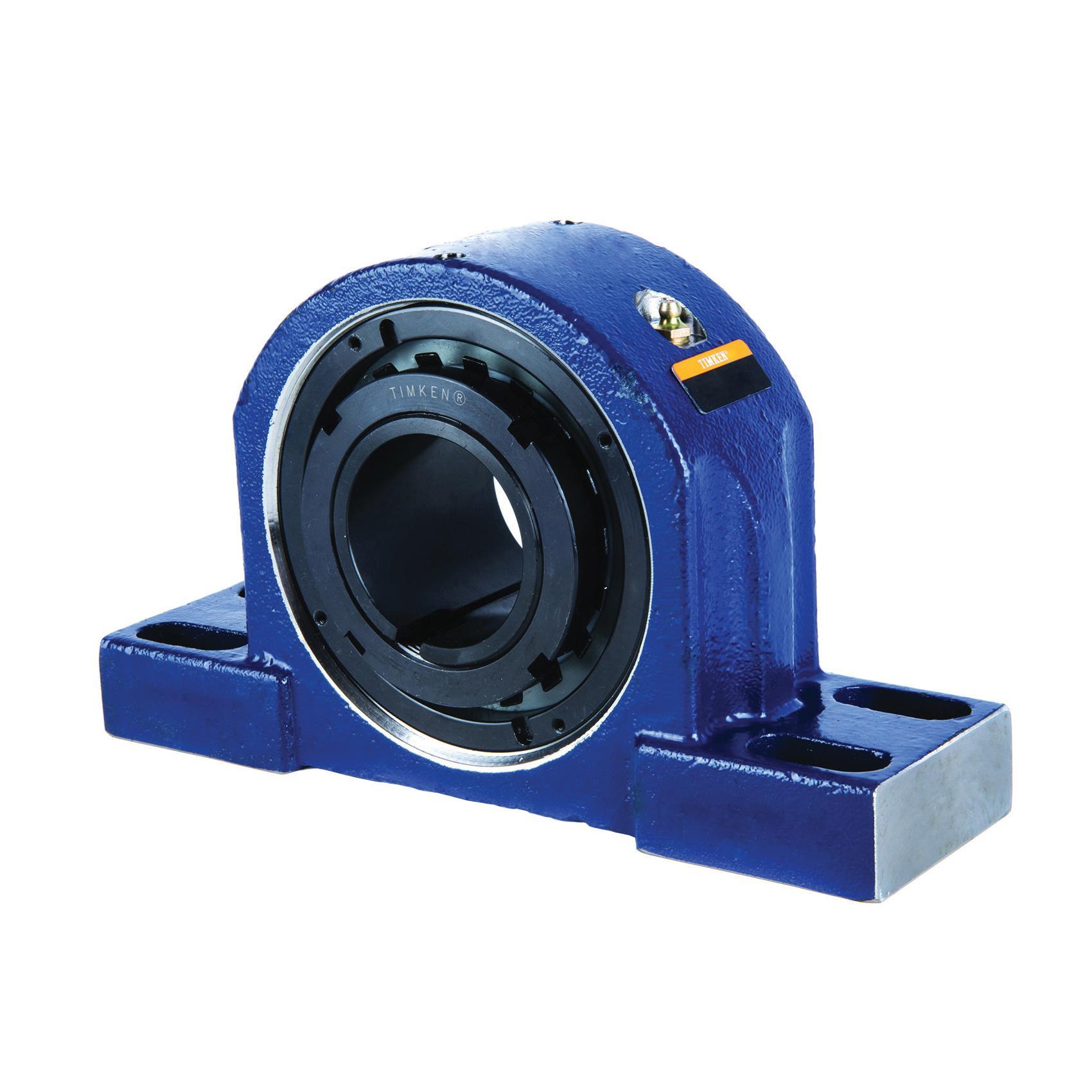

Timken® TAPG22K315SM QMBTAPG22K315SM

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken®, TAPG22K315SM, Pillow Block Spherical Roller Bearing Unit, 3-15/16 in Bore, 11.88 to 14.5 in Bolt Center-to-Center Length, 4.921 in Base to Bore Centerline, 16 in Overall Length, 4.86 in Overall Width, 9.38 in Overall Height, Four-Bolt Base Mounting, Cylindrical Bore, 4-3/4 in Base Width, Tapered Adapter Locking Device, Triple Lip M Seal, Non-Expansion (Fixed), 125000 lb Dynamic/147000 lb Static Load, 900 rpm Maximum, Cast Steel, Powder Coated

• 2300 series tapered adapter sleeve for increased shaft contact
• Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
• Direct drop-in replacement for SAF/SN split cap housing dimensions
• Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
• Bearing steel
• Double row bearing
• 22222 bearing insert bore series
• Open end type
• 360 deg shaft holding
• Accommodates undersized shafting
