Timken SNW-22 Adapter Sleeve Assembly, 3-7/8 in (3.875 in) Shaft
Timken SNW-22 Adapter Sleeve Assembly, 3-7/8 in (3.875 in) Shaft, 4.325-12 Thread
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIMSNW22 314
- MPN: SNW-22 X 3 7/8
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

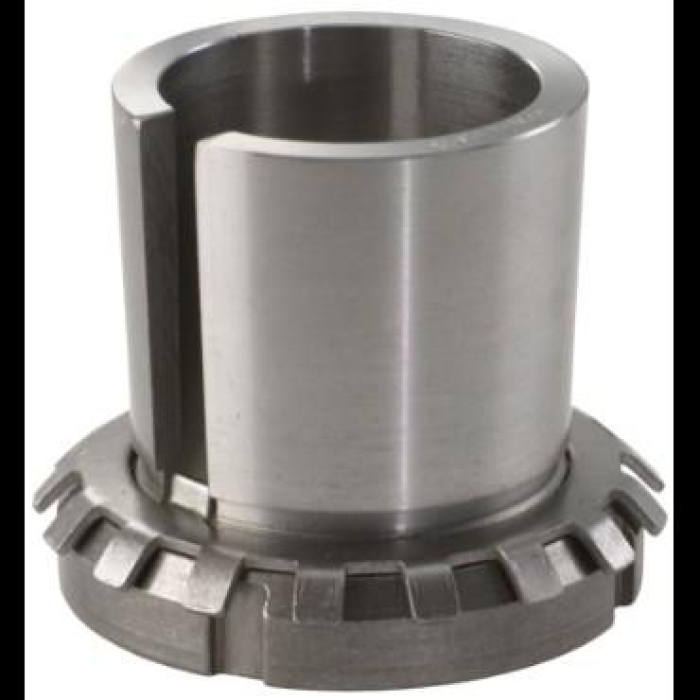

Timken SNW-22 X 3 7/8 adapter sleeve assembly for a 3-7/8 in (3.875 in) cylindrical shaft. Exact metric equivalent of the nominal shaft size: 98.425 mm. Used to mount a compatible tapered-bore bearing. Nominal sleeve length: 3.203125 in. Nominal supplied locknut outside diameter: 5.71875 in. Thread size: 4.325-12. The assembly includes a sleeve, locknut and lockwasher. Components: S-22 x 3 7/8 sleeve; AN 22 locknut; W 22 lockwasher.
| Brand Name | : | Timken |
| Material | : | Steel |
| Outside Diameter | : | 5.71875 in |
| Overall Length | : | 3.203125 in |
| Series | : | SNW |
| Shaft Diameter | : | 3.875 in |
| Thread Size | : | 4.325-12 |
| Type | : | Adapter Assembly |
