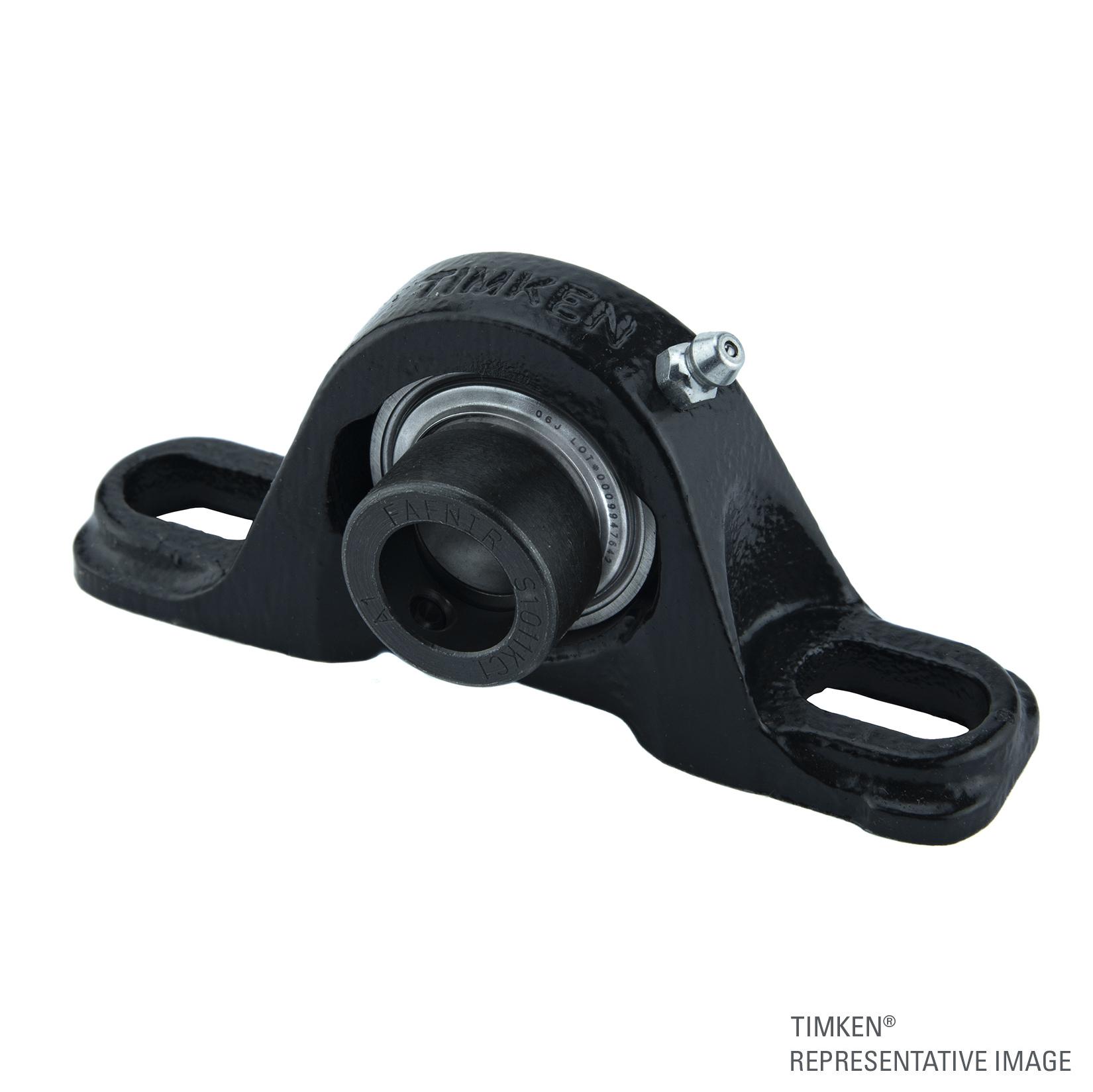

Timken® SAL2 3/16 TIMSAL2 3/16

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.

Timken®, SAL2 3/16, Pillow Block Ball Bearing Unit, Floating Normal Duty, Series: SAL, 2-3/16 in Bore, 9 in Bolt Center-to-Center Length, 3-1/8 in Base to Bore Centerline, 5-3/4 in Overall Length, 5-13/32 in Overall Width, Two-Bolt Base Mounting, Round Bore, 3-1/8 in Base Width, Eccentric Locking Device, Contact Seal, Fixed Expansion, 9750 lb Dynamic/6570 lb Static Load, 250 deg F, 4520 rpm Maximum, Cast Iron, Uncoated

• The floating unit allows the bearing-to move axially as the shaft expands from rising temperatures
• The fixed unit maintains shaft location
• The bearings have a loose internal fit
• The SAL unit is equipped with a self-aligning SM wide-inner-ring bearing and a self-locking collar
• The external aligning ring is fitted to the spherical surface of the outer-ring
• These types are equipped with oil-tight seals
• They're normally fitted for oil lubrication, but they can be equipped for grease lubrication when specified
• Before installation, lubricate with high-grade automotive oil, turbine oil or ball bearing grease
• The units are assembled with a spacer ring (fixed type) by removing the spacer ring, the assembly becomes a floating unit

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
