Timken® RAK 3/4 PT TIMRAK3/4PT
  1. pin-int

Timken® RAK 3/4 PT TIMRAK3/4PT

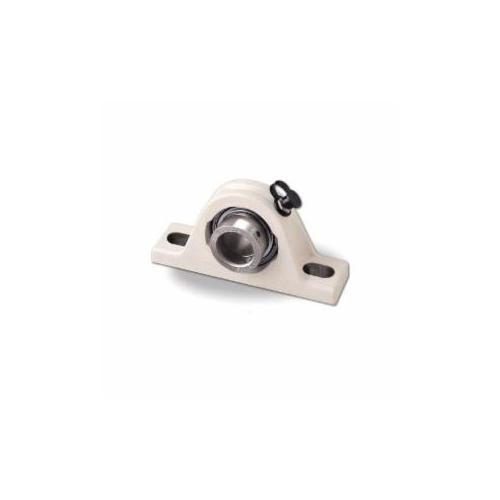

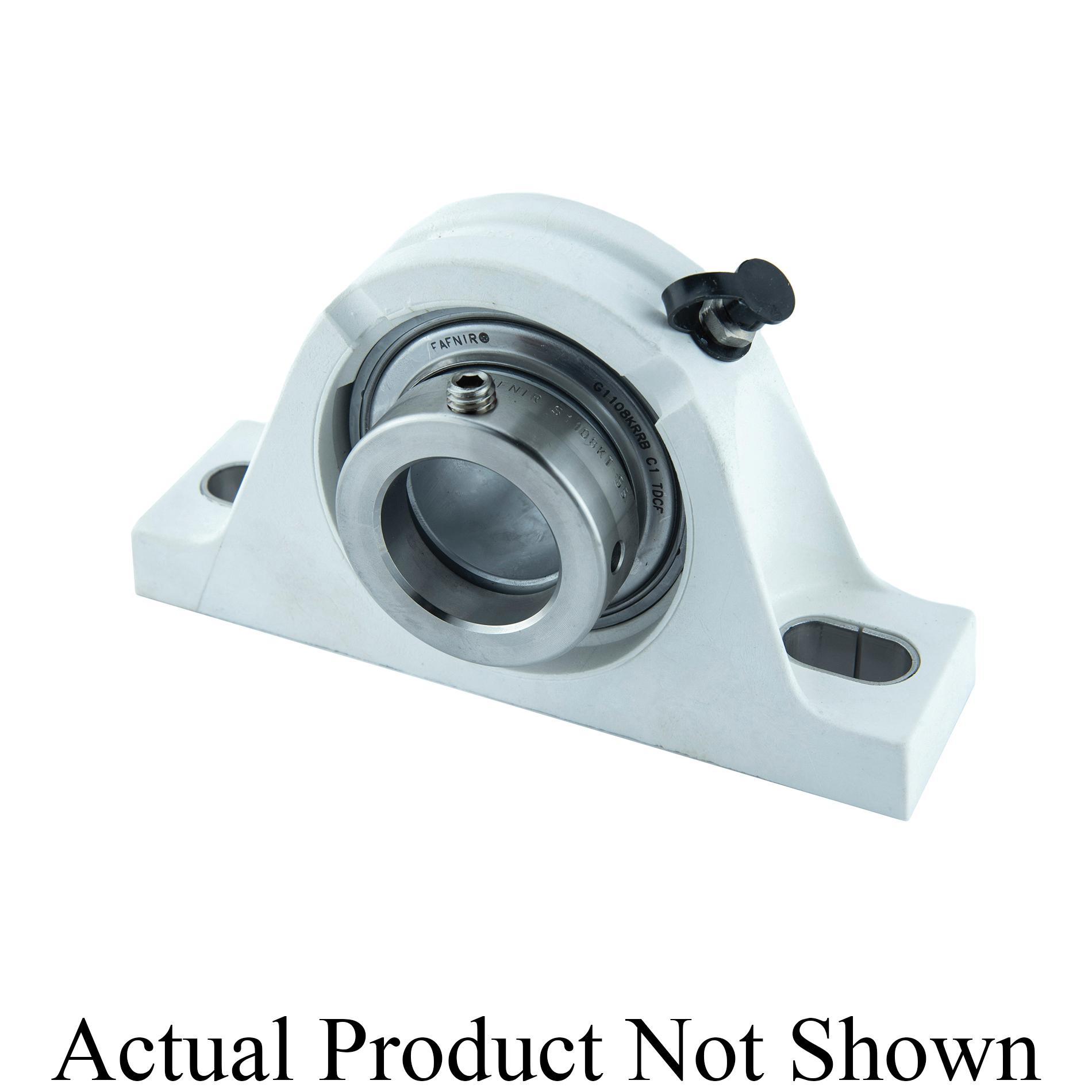

Timken® RAK 3/4 PT RAK Normal Duty Pillow Block Ball Bearing Unit, 3/4 in Dia Bore, 3-25/32 in L Bolt Center-to-Center, 1-1/4 in Base to Bore Centerline, 5 in OAL x 2-15/32 in OAH

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIMRAK3/4PT
  • MPN: RAK 3/4 PT
  • UPC: 087796180031
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.

Timken®, RAK 3/4 PT, Pillow Block Ball Bearing Unit, Normal Duty, Series: RAK, 3/4 in Bore, 3-25/32 in Bolt Center-to-Center Length, 1-1/4 in Base to Bore Centerline, 5 in Overall Length, 1-23/32 in Overall Width, 2-15/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-5/16 in Base Width, Eccentric Locking Device, Contact Seal, Non-Expansion (Fixed), 5680 lb Dynamic/2850 lb Static Load, 250 deg F, 6270 rpm Maximum, Cast Iron, Uncoated

Base Width      :      1-5/16 in
Base to Bore Centerline      :      1-1/4 in
Bolt Center-to-Center Length      :      3-25/32 in
Bore Diameter      :      3/4 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Uncoated
Load Capacity      :      5680 lb Dynamic/2850 lb Static
Locking Device      :      Eccentric
Material      :      Cast Iron
Maximum Speed      :      6270 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      2-15/32 in
Overall Length      :      5 in
Overall Width      :      1-23/32 in
Seal Type      :      Contact
Series      :      RAK
Temperature Rating      :      250 deg F
Type      :      Normal Duty
  • Heavier than our standard block with solid, flat feet for increased strength
  • Compact, one-piece housing can be mounted in any position
  • Pillow blocks self-align at mounting with the spherical outside diameter of the bearing fitting into the corresponding spherical housing seat
  • Pre-lubricated and ready for immediate installation
  • Grease fitting for relubrication
  • All units are supplied with corrosion-resistant G-KRRB ball bearing and locking collar
  • RAK pillow block is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_010_6015S_Catalog.pdf
