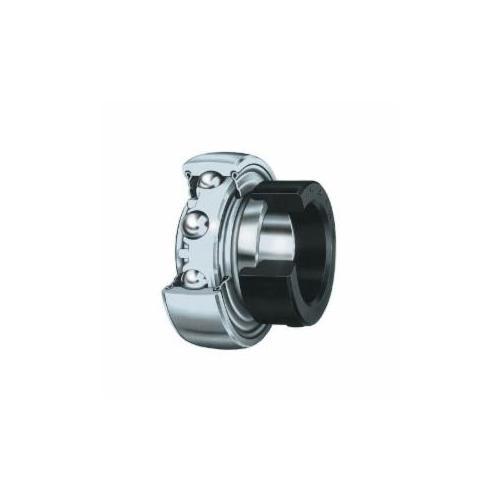

Timken® RA100RRB TIMRA100RRB

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications. When set screws are used, Timken® suggests using shaftguarding Technology™, a stainless-steel, hardened band that is inserted in a groove on the inner ring. When the set screws are tightened, they press against the band, tightening the grip on the shaft. Unlike traditional set screws, which can dig into the shaft, there are no nicks, raised metal or permanent shaft damage. The stainless band resists the formation of corrosion on the shaft.

Timken®, RA100RRB, Ball Insert Bearing Housed Unit, Non-Relubricatable Standard Duty, Series: RA-RRB, 1 in Bore, 2.0472 in OD, 27/32 in Width, Double Seal Closure, 3150 lb Dynamic/1760 lb Static Load, Steel Bearing, Nylon Cage, 4540 rpm Maximum, Uncoated

• These bearings are an extended inner-ring type with a self-locking collar
• Due to the positive-contact, the land-riding R-seal provides improved protection against harmful contaminants and retains lubricant under severe operating conditions
• RA-RRB series have spherical outside diameters for use in housings with corresponding spherical inside surfaces to provide unrestricted initial alignment
• Eccentric wide-inner-ring

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_1012KRRB_Catalog.pdf
