Timken® QVVPF16V215SM TIMQVVPF16V215SM

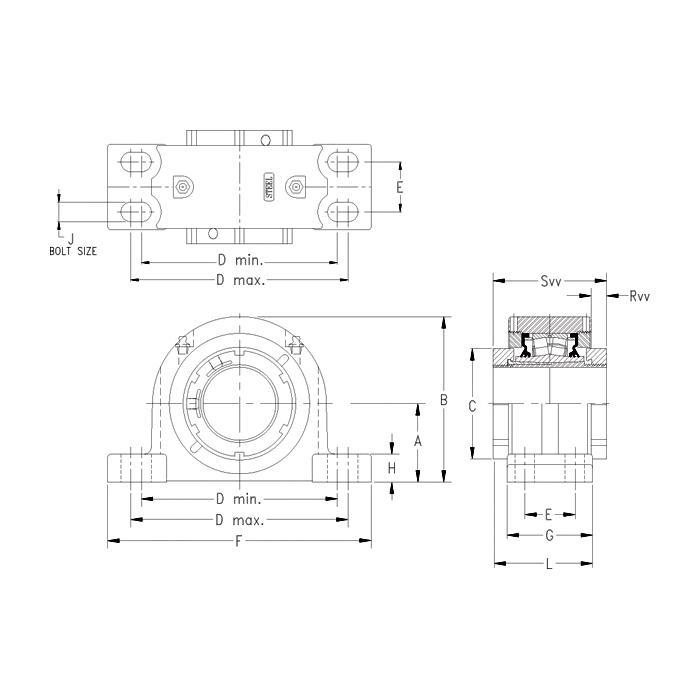

Timken® QVVPF16V215SM Pillow Block Spherical Roller Bearing Unit, 2-15/16 in Dia Bore, 7.6 to 9.1 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10.44 in OAL x 6.59 in OAH

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIMQVVPF16V215SM
  • MPN: QVVPF16V215SM
  • UPC: 883450173827
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken®, QVVPF16V215SM, Pillow Block Spherical Roller Bearing Unit, 2-15/16 in Bore, 7.6 to 9.1 in Bolt Center-to-Center Length, 3-1/4 in Base to Bore Centerline, 10.44 in Overall Length, 4.18 in Overall Width, 6.59 in Overall Height, Four-Bolt Base Mounting, Tapered Bore, 3.13 in Base Width, Double V-Lock® Locking Device, Triple Lip M Seal, Non-Expansion (Fixed), 57200 lb Dynamic/62500 lb Static Load, 1500 rpm Maximum, Cast Steel, Powder Coated

Base Width      :      3.13 in
Base to Bore Centerline      :      3-1/4 in
Bolt Center-to-Center Length      :      7.6 to 9.1 in
Bore Diameter      :      2-15/16 in
Bore Type      :      Tapered
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      57200 lb Dynamic/62500 lb Static
Locking Device      :      Double V-Lock®
Material      :      Cast Steel
Maximum Speed      :      1500 rpm
Mounting Type      :      Four-Bolt Base
Overall Height      :      6.59 in
Overall Length      :      10.44 in
Overall Width      :      4.18 in
Seal Type      :      Triple Lip M
Type      :      Extreme Heavy Duty S2000 Style Solid Block
  • Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
  • Maximum holding power and prevention of overtightening
  • Reliable mechanical withdraw
  • Preset spherical inner ring radial internal clearances
  • Quick installation
  • Double row bearing
  • 22216 bearing insert bore series
  • Works well with high-speed applications where shaft centering is an issue
  • Double nut facilitates the withdraw of the unit from the shaft
  • Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion-resistant
  • Bearing steel
  • Open end type
  • 360 deg shaft holding
  • Designed to eliminate over-tightening
  • Mechanical withdrawal for easier removal
  • Larger bearings and higher load rating compared to competitive products having same bore size
