Timken® QVVP12V203ST QMBQVVP12V203ST

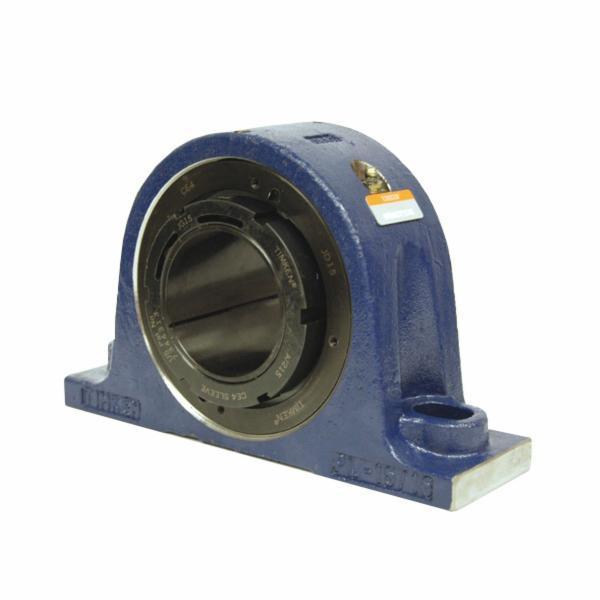

Timken® QVVP12V203ST Solid Block Type E Spherical Roller Bearing Housed Unit, 2-13/16 in Dia Bore, 6.5 to 7.88 in L Bolt Center-to-Center, 2-1/2 in Base to Bore Centerline, 9.63 in OAL x 5-1/4 in OAH
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: QMBQVVP12V203ST
- MPN: QVVP12V203ST
- UPC: 883450113588
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Timken®, QVVP12V203ST, Spherical Roller Bearing Housed Unit, Solid Block Type E, 2-13/16 in Bore, 6.5 to 7.88 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 9.63 in Overall Length, 4.02 in Overall Width, 5-1/4 in Overall Height, Two-Bolt Base Mounting, Tapered Bore, 2.63 in Base Width, Double V-Lock® Locking Device, Non-Expansion (Fixed), 38100 lb Dynamic/39000 lb Static Load, 3000 rpm Grease/3500 rpm Oil Maximum, Cast Steel
| Base Width | : | 2.63 in |
| Base to Bore Centerline | : | 2-1/2 in |
| Bolt Center-to-Center Length | : | 6.5 to 7.88 in |
| Bore Diameter | : | 2-13/16 in |
| Bore Type | : | Tapered |
| Expansion Type | : | Non-Expansion (Fixed) |
| Load Capacity | : | 38100 lb Dynamic/39000 lb Static |
| Locking Device | : | Double V-Lock® |
| Material | : | Cast Steel |
| Maximum Speed | : | 3000 rpm Grease/3500 rpm Oil |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 5-1/4 in |
| Overall Length | : | 9.63 in |
| Overall Width | : | 4.02 in |
| Seal Type | : | T Seal |
| Type | : | Solid Block Type E |
