Timken® QMP08J108SM TIMQMP08J108SM

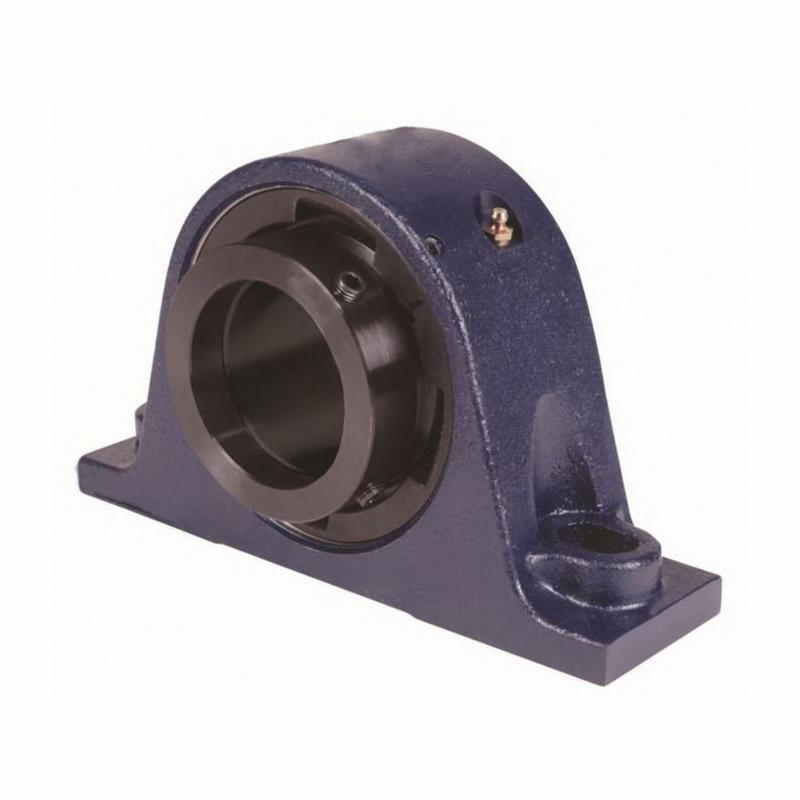

Timken® QMP08J108SM EC Series Solid Block Type E Spherical Roller Bearing Housed Unit, 1-1/2 in Dia Bore, 4.69 to 6.5 in L Bolt Center-to-Center, 2.13 in Base to Bore Centerline, 7.88 in OAL x 3.98 in OAH
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIMQMP08J108SM
- MPN: QMP08J108SM
- UPC: 883450154314
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMP08J108SM, Spherical Roller Bearing Housed Unit, Solid Block Type E, Series: EC Series, 1-1/2 in Bore, 4.69 to 6.5 in Bolt Center-to-Center Length, 2.13 in Base to Bore Centerline, 7.88 in Overall Length, 2.88 in Overall Width, 3.98 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2-1/4 in Base Width, Eccentric Locking Device, M Seal, Non-Expansion (Fixed), 23400 lb Dynamic/22400 lb Static Load, 2700 rpm Grease/Oil Maximum, Cast Steel
| Base Width | : | 2-1/4 in |
| Base to Bore Centerline | : | 2.13 in |
| Bolt Center-to-Center Length | : | 4.69 to 6.5 in |
| Bore Diameter | : | 1-1/2 in |
| Bore Type | : | Cylindrical |
| Expansion Type | : | Non-Expansion (Fixed) |
| Load Capacity | : | 23400 lb Dynamic/22400 lb Static |
| Locking Device | : | Eccentric |
| Material | : | Cast Steel |
| Maximum Speed | : | 2700 rpm Grease/Oil |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 3.98 in |
| Overall Length | : | 7.88 in |
| Overall Width | : | 2.88 in |
| Seal Type | : | M Seal |
| Series | : | EC Series |
| Type | : | Solid Block Type E |
- M Seal - Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications. It is chemical and corrosion resistant and provides excellent lubrication retention. It also allows excess grease to purge from the bearing cavity.
- Eccentric Locking - EC Series - A reduced eccentric offset results in more mechanical advantage. This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications.
