Timken® QMC09J112SO QMBQMC09J112SO

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

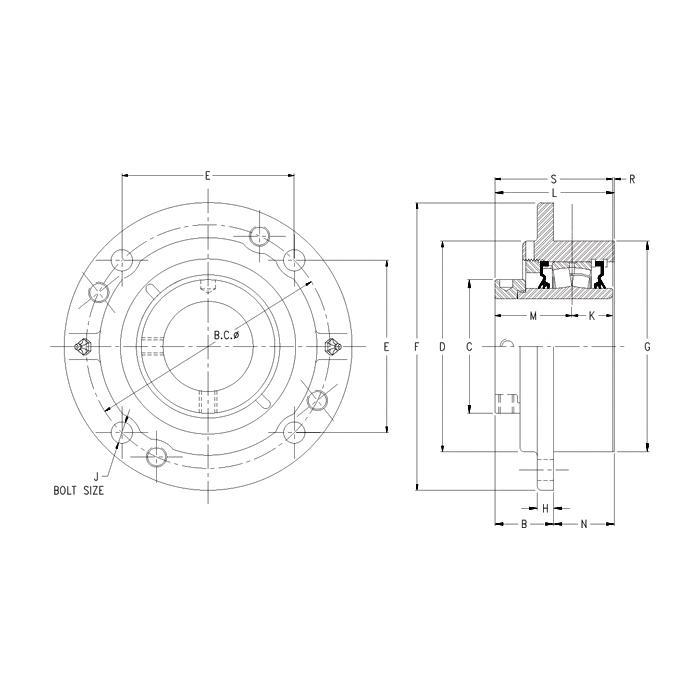

Timken®, QMC09J112SO, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 1-3/4 in Bore, 3.62 in Bolt Center-to-Center Length, 5.13 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 6.13 in Overall Length/Diameter, 3.03 in Overall Depth, Eccentric Locking Device, Steel Bearing, Urethane Seal, 24500 lb Dynamic/24200 lb Static Load, 1950 rpm Maximum, -40 to 250 deg F, Powder Coated

• Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
• Suitable for reversing applications
• Triple-lip contacting, self-purging urethane seal is excellent in moist and dirty applications, chemical and corrosion-resistant and resistant to abrasion
• Double row bearing
• Cast steel housing
• Open end type
• Solid block housing
• Do not operate at bearing temperatures above 250 deg F
