Timken® QAP08A107SO TIMQAP08A107SO
  1. pin-int

Timken® QAP08A107SO TIMQAP08A107SO

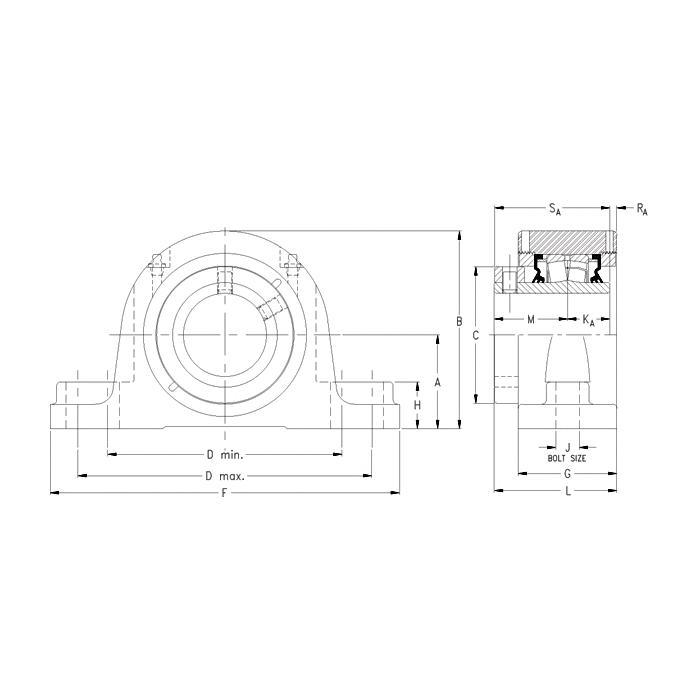

Timken® QAP08A107SO Pillow Block Spherical Roller Bearing Unit, 1-7/16 in Dia Bore, 4.69 to 6 in L Bolt Center-to-Center, 1.88 in Base to Bore Centerline, 6.88 in OAL x 3.73 in OAH

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIMQAP08A107SO
  • MPN: QAP08A107SO
  • UPC: 883450403313
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.

Timken®, QAP08A107SO, Pillow Block Spherical Roller Bearing Unit, 1-7/16 in Bore, 4.69 to 6 in Bolt Center-to-Center Length, 1.88 in Base to Bore Centerline, 6.88 in Overall Length, 2.88 in Overall Width, 3.73 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2-1/4 in Base Width, Single Concentric Collar Locking Device, Triple Lip O Seal, Non-Expansion (Fixed), 23400 lb Dynamic/22400 lb Static Load, 1950 rpm Maximum, Cast Steel, Powder Coated

Base Width      :      2.25 in
Base to Bore Centerline      :      1.88 in
Bolt Center-to-Center Length      :      4.69 to 6 in
Bore Diameter      :      1-7/16 in
Bore Type      :      Cylindrical
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      23400 lb Dynamic/22400 lb Static
Locking Device      :      Single Concentric Collar
Material      :      Cast Steel
Maximum Speed      :      1950 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      3.73 in
Overall Length      :      6.88 in
Overall Width      :      2.88 in
Seal Type      :      Triple Lip O
Type      :      Heavy Duty Solid Block Type E
  • Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
  • Double collared insert provides double the holding power compared to our standard single collared insert
  • Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
  • Bearing steel
  • Open end type
  • Double row bearing
  • 22208 bearing insert bore series
  • Simple installation
  • Minimal runout
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVP10K111SM_Catalog.pdf
