Timken® QAC20A315SM TIMQAC20A315SM
  1. pin-int

Timken® QAC20A315SM TIMQAC20A315SM

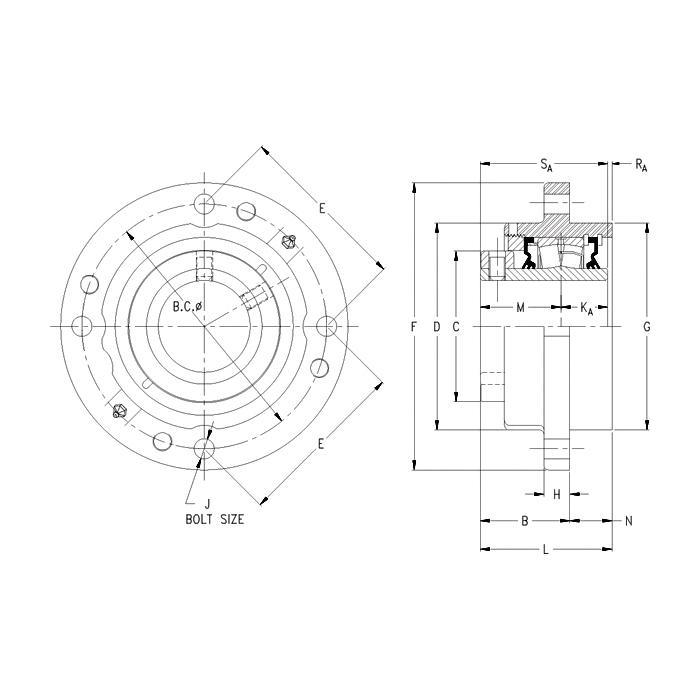

Timken® QAC20A315SM Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 3-15/16 in Dia Bore, 6.63 in L Bolt Center-to-Center, 9.38 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 10.88 in OAL/Dia

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIMQAC20A315SM
  • MPN: QAC20A315SM
  • UPC: 883450193276
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.

Timken®, QAC20A315SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 3-15/16 in Bore, 6.63 in Bolt Center-to-Center Length, 9.38 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 10.88 in Overall Length/Diameter, 4.96 in Overall Depth, Single Concentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 97700 lb Dynamic/113000 lb Static Load, 1200 rpm Maximum, -40 to 250 deg F, Powder Coated

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      6.63 in
Bolt Circle Diameter      :      9.38 in
Bore Diameter      :      3-15/16 in
Finish      :      Powder Coated
Flange Mounting Type      :      4-Bolt Piloted
Load Capacity      :      97700 lb Dynamic/113000 lb Static
Locking Device      :      Single Concentric Collar
Maximum Speed      :      1200 rpm
Overall Depth      :      4.96 in
Overall Length/Diameter      :      10.88 in
Seal Material      :      Nitrile Rubber
Temperature Rating      :      -40 to 250 deg F
Type      :      Heavy Duty Non-Expansion Cylindrical Bore
  • Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
  • Double collared insert provides double the holding power compared to our standard single collared insert
  • Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
  • Double row bearing
  • Cast steel housing
  • Open end type
  • Solid block housing
  • Do not operate at bearing temperatures above 250 deg F
