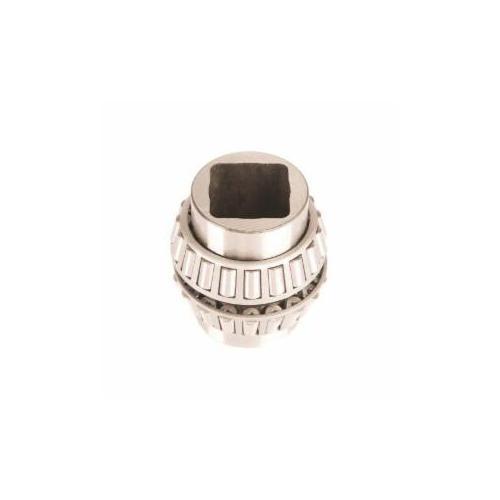

Timken® LM501334SD-2 TIMLM501334SD
Timken® LM501334SD-2 LM501300 Double-Row Tapered Roller Bearing Cone, 1-11/16 in Dia Bore, 2-7/8 in W Cone, 23300 lb Dynamic/33400 lb Static Load, For Use With LM501310 Tapered Roller Bearing Cup
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIMLM501334SD
- Alt Part Number: LM501334SD-20000
- MPN: LM501334SD-2
- UPC: 053893625126
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Timken®, LM501334SD-2, Tapered Roller Bearing Cone, Double-Row, Series: LM501300, 1-11/16 in Bore, 2-7/8 in Cone Width, For Use With: LM501310 Tapered Roller Bearing Cup, 23300 lb Dynamic/33400 lb Static Load, Steel Cage, -65 to 250 deg F, Uncoated
| Bore Diameter | : | 1-11/16 in |
| Cage Material | : | Steel |
| Cone Width | : | 2-7/8 in |
| Finish | : | Uncoated |
| Load Capacity | : | 23300 lb Dynamic/33400 lb Static |
| Series | : | LM501300 |
| Suitable For Use With | : | LM501310 Tapered Roller Bearing Cup |
| Temperature Rating | : | -65 to 250 deg F |
| Type | : | Double-Row |
- Available in single, double and multi-row configurations, as well as proprietary sizes
- Designed in collaboration with OE engineers to design, engineer and test bearings for premium performance in many applications
- Power dense designs allow for heavier loads and can help extend bearing life
- Optimized internal geometry lower torque and operating temperatures to extend lubrication system life
- Can be designed to withstand high-corrosive, high-temperature and vacuum or low-lubrication environments with proprietary enhancements
- Square bore prevents the cone from creeping
