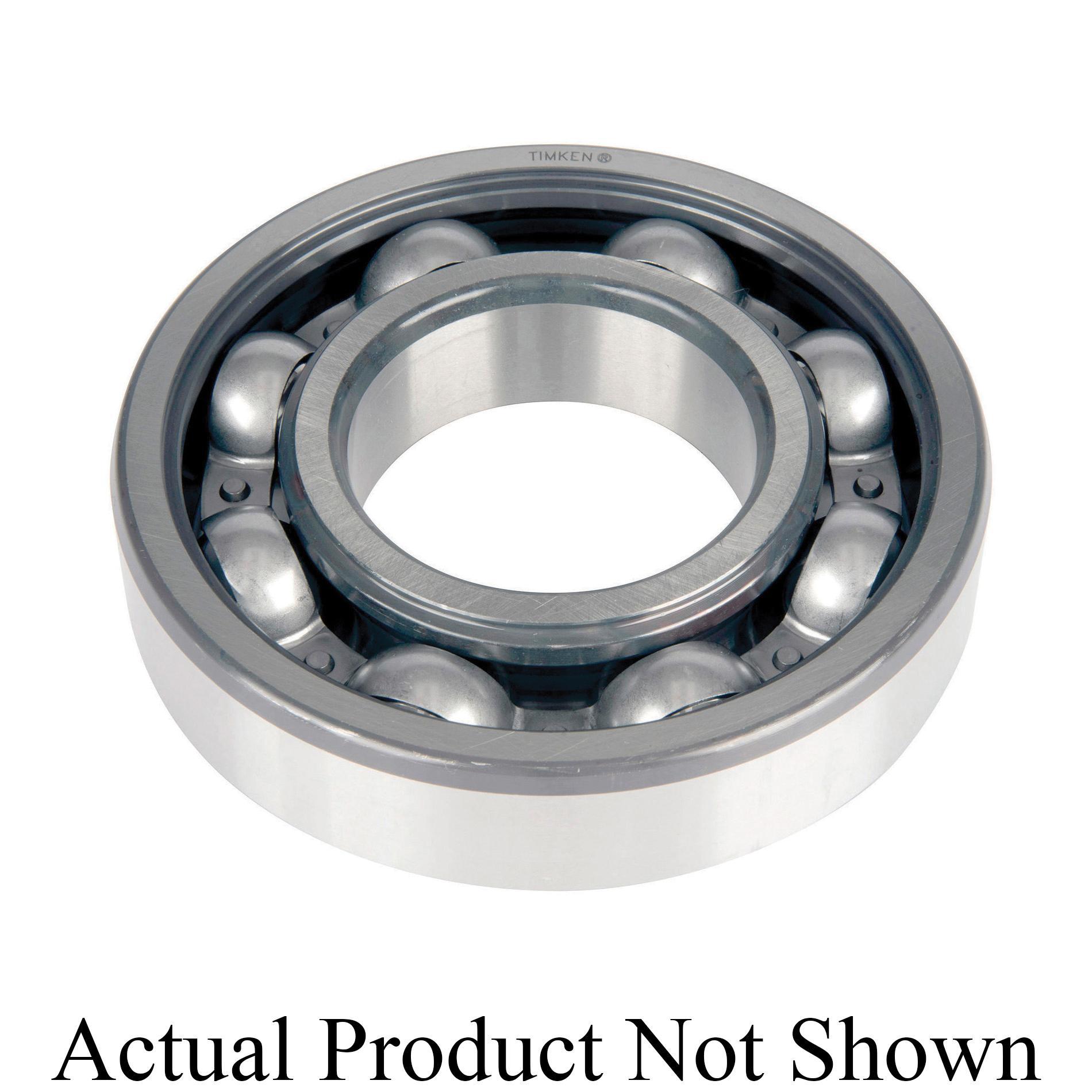

Timken® 6301-C3 TIM6301-C3
Timken® 6301-C3 6300 Medium Standard Straight Bore ISO Deep Groove Radial Ball Bearing, 12 mm Dia Bore, 37 mm Dia Outside, 1 Rows, 12 mm W, 2180.647 lb Dynamic/944.198 lb Static Load
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIM6301-C3
- Alt Part Number: 100269674
- MPN: 6301-C3
- UPC: 053893724683
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Timken supplies a full range of product in the world’s most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6301-C3, ISO Deep Groove Radial Ball Bearing, Medium Standard Straight Bore, Series: 6300, 12 mm Bore, 37 mm OD, 1 Rows, 12 mm Width, Open Closure, 2180.647 lb Dynamic/944.198 lb Static Load, Cold Rolled Steel Cage, 19000 rpm Grease/27000 rpm Oil Maximum, -50 to 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 12 mm |
| Cage Material | : | Cold Rolled Steel |
| Closure Type | : | Open |
| Load Capacity | : | 2180.647 lb Dynamic/944.198 lb Static |
| Maximum Speed | : | 19000 rpm Grease/27000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 37 mm |
| Series | : | 6300 |
| Temperature Rating | : | -50 to 120 deg C |
| Type | : | Medium Standard Straight Bore |
| Width | : | 12 mm |
- Super finished raceways
- Quiet operation
- ISO standard interchangeable dimensions
- Electric motor quality (EMQ)
