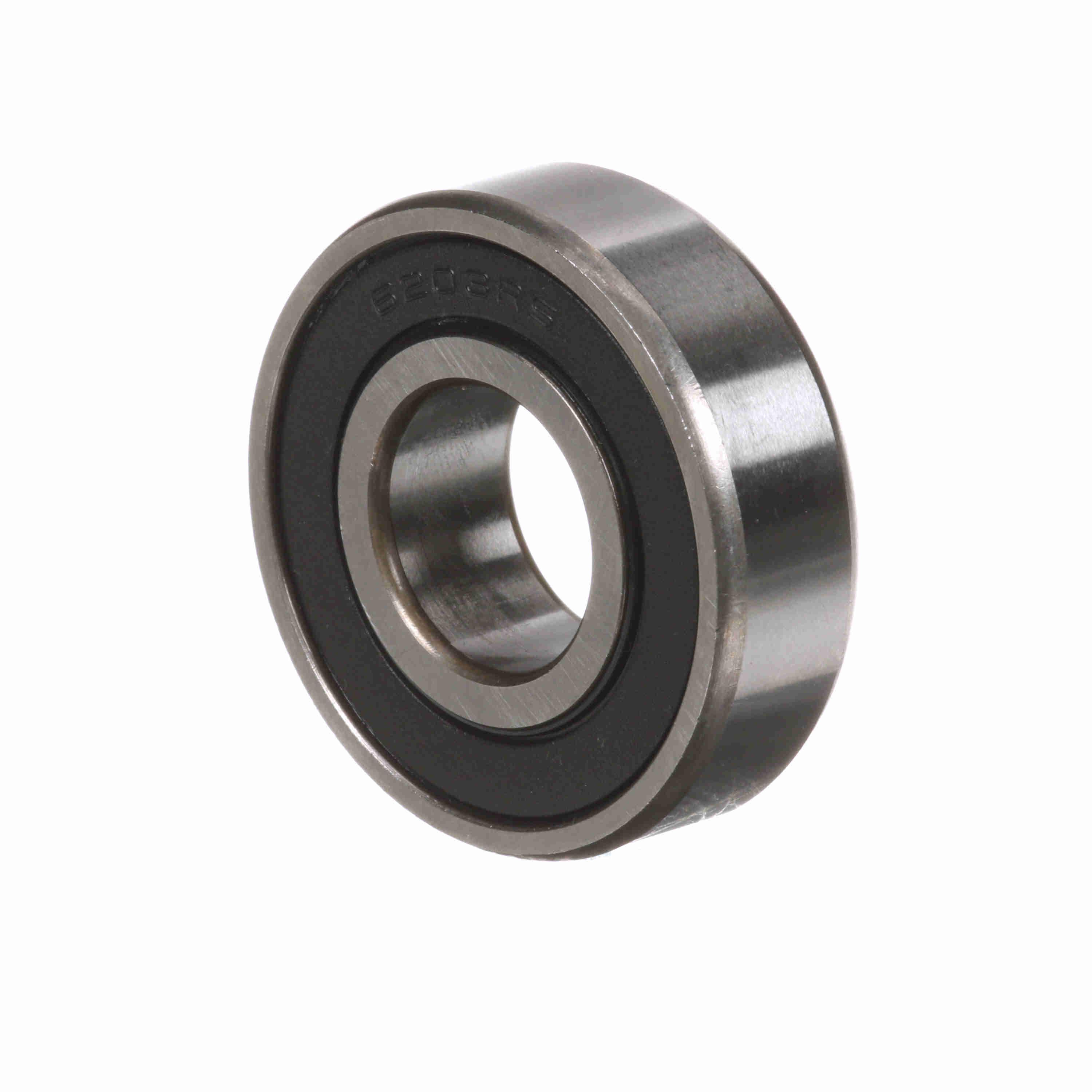

Timken® 6203-2RS-C3 TIM6203-2RS-C3
Timken® 6203-2RS-C3 6200 Standard Straight Bore ISO Deep Groove Radial Ball Bearing, 17 mm Dia Bore, 40 mm Dia Outside, 1 Rows, 12 mm W, 2158.166 lb Dynamic/1079 lb Static82923727312 Load
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIM6203-2RS-C3
- MPN: 6203-2RS-C3
- UPC: 087796293052
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request.
Timken®, 6203-2RS-C3, ISO Deep Groove Radial Ball Bearing, Standard Straight Bore, Series: 6200, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Dual Contact Seal Closure, 2158.166 lb Dynamic/1079 lb Static82923727312 Load, Steel Bearing, 17000 rpm Grease/25000 rpm Oil Maximum, -40 to 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 17 mm |
| Cage Material | : | Steel |
| Closure Type | : | Dual Contact Seal |
| Load Capacity | : | 2158.166 lb Dynamic/1079 lb Static82923727312 |
| Maximum Speed | : | 17000 rpm Grease/25000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 40 mm |
| Series | : | 6200 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Standard Straight Bore |
| Width | : | 12 mm |
- Super finished raceways
- Quiet operations
- ISO standard interchangeable dimensions
- Contact seals offer superior lubricant retention and bearing protection from contaminants
- Premium grease for high performance, low torque and less noise
- C3 loose internal clearance
