Timken® 3MM9313WI DUL TIM3MM9313WICRDUL

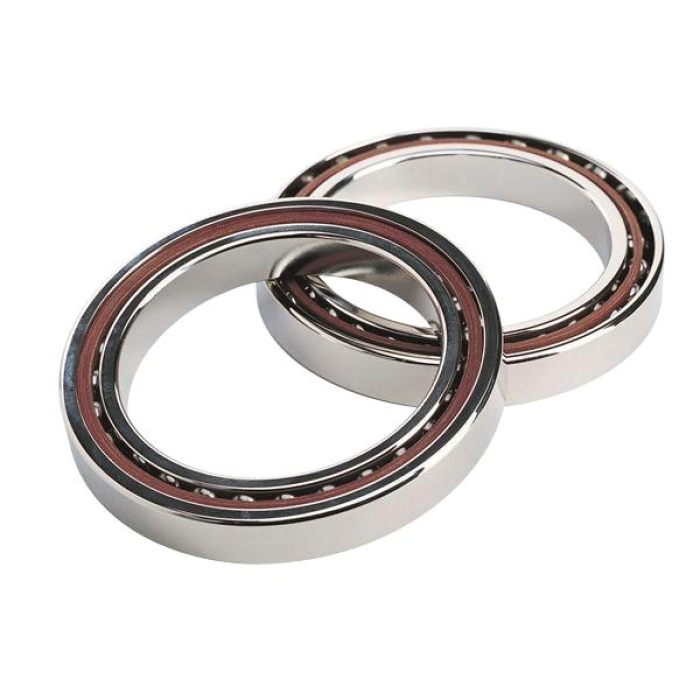

Timken® 3MM9313WI DUL 3MM9300WI Light Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 65 mm Dia Bore, 90 mm OD, 2 Rows, 13 mm W, 25 deg, 22200 N Dynamic/20400 N Static Load
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIM3MM9313WICRDUL
- MPN: 3MM9313WI DUL
- UPC: 087796202306
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
3MM-WI manufactured with 25 deg contact angle, are for use on applications where the loading on the bearings is predominately thrust and a high degree of axial rigidity is a definite requirement. Typical applications for these are large vertical rotary surface grinders, horizontal and vertical disc grinders, and thrust bearing applications for heavy-duty lathes where the bearings must directly carry extremely high tail stock or chucking pressure.
Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 3MM9300WI, 65 mm Bore Dia, 90 mm Outside Dia, 2 Rows, 13 mm W, 25 deg Contact, Open Closure, 22200 N Dynamic/20400 N Static, Phenolic Cage, 12800 rpm Maximum, Uncoated
| Bore Diameter | : | 65 mm |
| Cage Material | : | Phenolic |
| Closure Type | : | Open |
| Contact Angle | : | 25 deg |
| Finish | : | Uncoated |
| Load Capacity | : | 22200 N Dynamic/20400 N Static |
| Maximum Speed | : | 12800 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 90 mm |
| Series | : | 3MM9300WI |
| Type | : | Light Duty |
| Width | : | 13 mm |
- Single and double-row ball screw
- Very high-speed
- High accuracy and stiffness
- Low operating temperature
- Low noise and vibration
- Angular contact low shoulder on outer-ring
