Timken® 2MM9112WICRDUMC2 TIM2MM9112WIDUM
  1. pin-int

Timken® 2MM9112WICRDUMC2 TIM2MM9112WIDUM

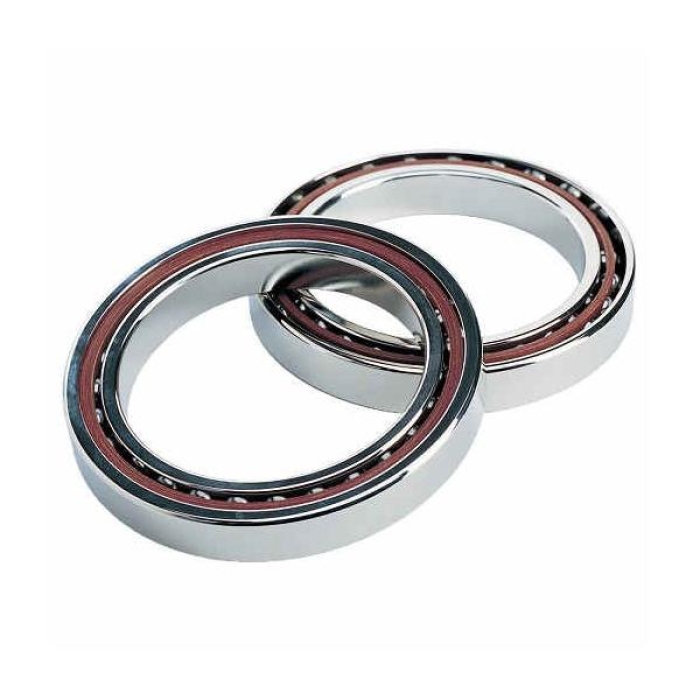

Timken® 2MM9112WICRDUMC2 2MM9100WI Medium Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 60 mm Dia Bore, 95 mm OD, 2 Rows, 18 mm W, 15 deg, 38800 N Dynamic/30500 N Static Load

  • Manufacturer: Timken
  • Brand Name: Timken®
  • Part Number: TIM2MM9112WIDUM
  • MPN: 2MM9112WICRDUMC2
  • UPC: 087796072589
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

2MM-WI types with 15 deg initial contact angle are designed to meet the needs of machine builders for precision bearings which will operate at as low a temperature as possible for a wide range of speeds and operating loads. In order for machines to produce more accurate work at a higher production rate, the bearings must provide a high degree of rigidity in both axial and radial directions while operating at minimum temperatures.

Timken® Super Precision Angular Contact Ball Bearing, Medium Duty, Series: 2MM9100WI, 60 mm Bore Dia, 95 mm Outside Dia, 2 Rows, 18 mm Width, 15 deg Contact, 38800 N Dynamic/30500 N Static, Phenolic Cage, 13600 rpm Maximum

Bore Diameter      :      60 mm
Cage Material      :      Phenolic
Contact Angle      :      15 deg
Load Capacity      :      38800 N Dynamic/30500 N Static
Maximum Speed      :      13600 rpm
Number of Rows      :      2
Outside Diameter      :      95 mm
Series      :      2MM9100WI
Type      :      Medium Duty
Width      :      18 mm
  • Single and double-row ball screw
  • Very high-speed
  • High accuracy and stiffness
  • Low operating temperature
  • Low noise and vibration
  • Angular contact low shoulder on outer-ring
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_2MM9112WI_Specification_Sheet.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_3M205WOP8PRBDBE8350_Catalog.pdf
