Timken® 2MM9106WI DUH TIM2MMC9106WICRDUH

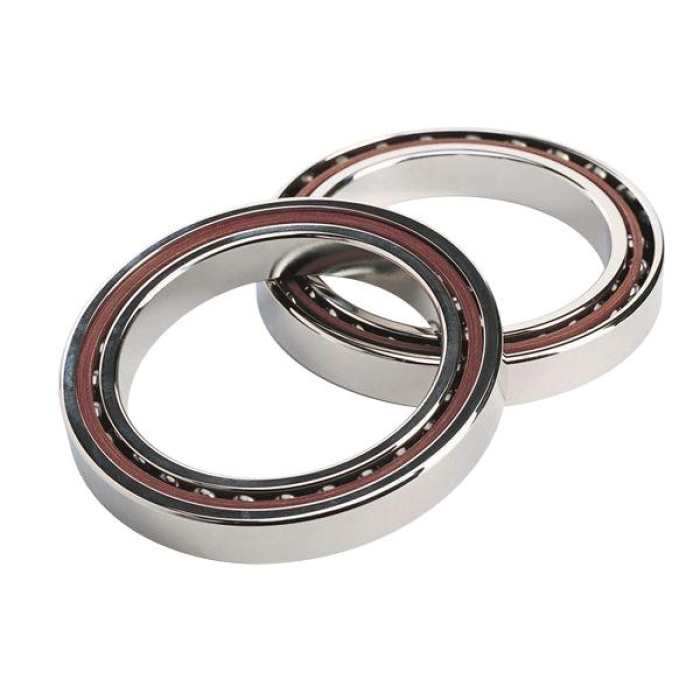

Timken® 2MM9106WI DUH 2MM9100WI Heavy Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 30 mm Dia Bore, 55 mm OD, 2 Rows, 13 mm W, 15 deg, 16800 N Dynamic/10300 N Static Load
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIM2MMC9106WICRDUH
- MPN: 2MM9106WI DUH
- UPC: 087796072152
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
2MM-WI types with 15 deg initial contact angle are designed to meet the needs of machine builders for precision bearings which will operate at as low a temperature as possible for a wide range of speeds and operating loads. In order for machines to produce more accurate work at a higher production rate, the bearings must provide a high degree of rigidity in both axial and radial directions while operating at minimum temperatures.
Timken® Super Precision Angular Contact Ball Bearing, Heavy Duty, Series: 2MM9100WI, 30 mm Bore Dia, 55 mm Outside Dia, 2 Rows, 13 mm W, 15 deg Contact, Open Closure, 16800 N Dynamic/10300 N Static, Steel Bearing, Phenolic Cage, 25500 rpm Maximum, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 30 mm |
| Cage Material | : | Phenolic |
| Closure Type | : | Open |
| Contact Angle | : | 15 deg |
| Finish | : | Uncoated |
| Load Capacity | : | 16800 N Dynamic/10300 N Static |
| Maximum Speed | : | 25500 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 55 mm |
| Series | : | 2MM9100WI |
| Type | : | Heavy Duty |
| Width | : | 13 mm |
- Single and double-row ball screw
- Very high-speed
- High accuracy and stiffness
- Low operating temperature
- Low noise and vibration
- Angular contact low shoulder on outer-ring
Specification Sheet
