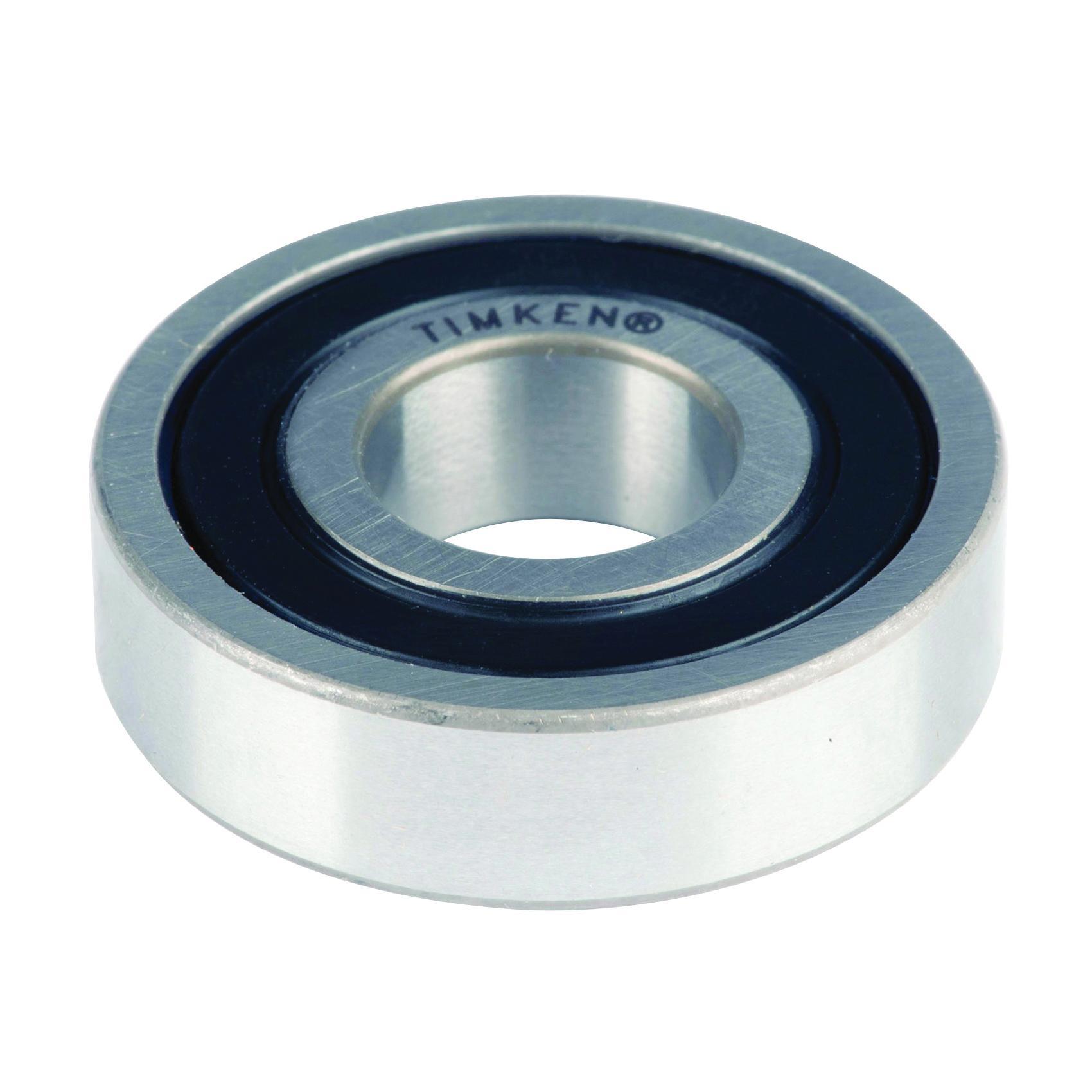

Timken® 16101-2RS TIM16101-2RS
Timken® 16101-2RS 16100 Narrow Straight Bore ISO Deep Groove Radial Ball Bearing, 12 mm Dia Bore, 30 mm Dia Outside, 1 Rows, 8 mm W, 1146.525 lb Dynamic/539.541 lb Static Load
- Manufacturer: Timken
- Brand Name: Timken®
- Part Number: TIM16101-2RS
- MPN: 16101-2RS
- UPC: 053893720180
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request.
Timken®, 16101-2RS, ISO Deep Groove Radial Ball Bearing, Narrow Straight Bore, Series: 16100, 12 mm Bore, 30 mm OD, 1 Rows, 8 mm Width, Dual Contact Seal Closure, 1146.525 lb Dynamic/539.541 lb Static Load, Steel Bearing, 22000 rpm Grease/33000 rpm Oil Maximum, -40 to 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 12 mm |
| Cage Material | : | Steel |
| Closure Type | : | Dual Contact Seal |
| Load Capacity | : | 1146.525 lb Dynamic/539.541 lb Static |
| Maximum Speed | : | 22000 rpm Grease/33000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 30 mm |
| Series | : | 16100 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Narrow Straight Bore |
| Width | : | 8 mm |
- Super finished raceways
- Quiet operations
- ISO standard interchangeable dimensions
- Narrow series design has a smaller width, relative to standard designs for uses in space constrained applications
- Contact seals offer superior lubricant retention and bearing protection from contaminants
- Premium grease for high performance, low torque and less noise
- C0 normal internal clearance
