Thomson® SCB6TWN THOSCB6TWN

The Super Ball Bushing® bearing has been the industry standard for self-aligning linear bearings for more than 20 years. This bearing provides three times the load capacity or 27 times the travel life of conventional linear bearings. This dramatic improvement in bearing performance significantly reduces downtime and maintenance, while increasing machine reliability. Thomson® invented the Super Ball Bushing® bearing with many unique design features. Besides the dramatic increase in load capacity, the Super Ball Bushing® bearing is self-aligning, lightweight and adjustable with a low coefficient of friction.

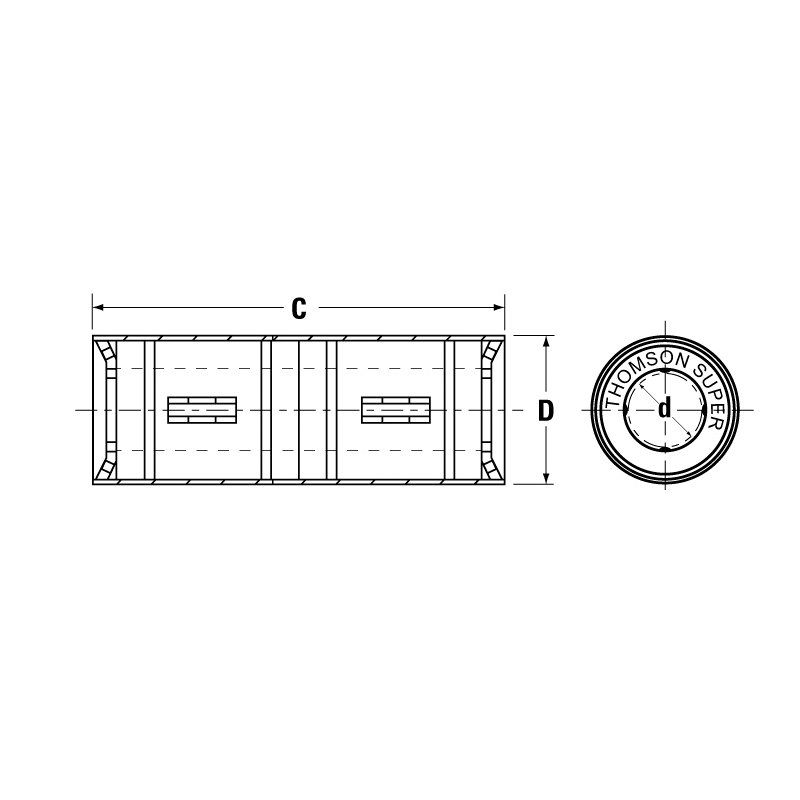

Thomson® Super Ball Bushing® Cartridge Bearing, Twin Closed, 3/8 in Shaft Dia, 0.658 in Outside Dia, 2.005 in Length, 200 lb Dynamic, Steel Bearing, 185 deg F

• Cartridge bearings are designed to be installed into a soft or slightly out-of-round housing
• The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications
• Radially floating bearing plates
• When installed in an adjustable housing, the Super Ball Bushing® bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement
• Non-adjustable
• Self-aligning
• 4 ball circuits

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Thomson_ADJS1000_Catalog.pdf
