Thomson® MAM12ADJ THOMAM12ADJ
  1. pin-int

Thomson® MAM12ADJ THOMAM12ADJ

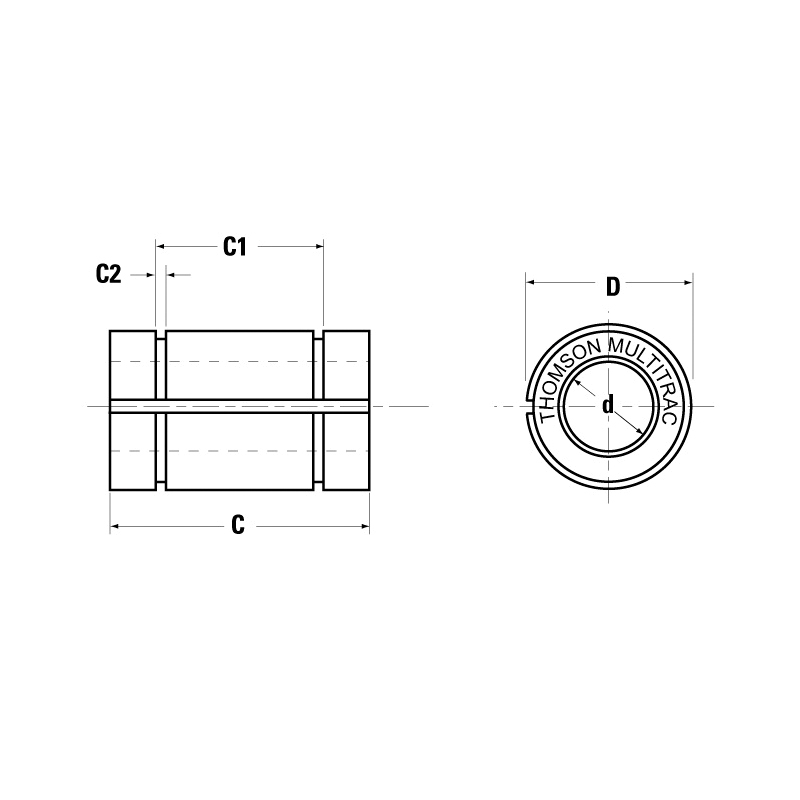

Thomson® MultiTrac® Ball Bushing® MAM12ADJ Adjustable Closed Linear Bearing, 12 mm Dia Shaft, 22 mm OD, 32 mm L

  • Manufacturer: Thomson Industries
  • Brand Name: Thomson®
  • Part Number: THOMAM12ADJ
  • MPN: MAM12ADJ
  • UPC: 662486235804
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The extremely rigid MultiTrac® Ball Bushing® reduces deflection and provides twice the load capacity or eight times the travel life of conventional ball bushing bearings. The bearing's patented ball control technology eliminates binding and chatter (stick-slip), common with high friction, plain bearings. The improvement in bearing capacity permits designers to optimize system compactness and minimizes hardware costs.

Thomson® MultiTrac® Ball Bushing® Linear Bearing, Adjustable Closed, 12 mm Shaft Dia, 22 mm Outside Dia, 32 mm Length, 350 N Dynamic/880 N Static, Steel Bearing, 185 deg F

Bearing Material      :      Steel
Length      :      32 mm
Load Capacity      :      350 N Dynamic/880 N Static
Outside Diameter      :      22 mm
Shaft Diameter      :      12 mm
Temperature Rating      :      185 deg F
Type      :      Adjustable Closed
  • Patented, multiple-track design with up to twice the load-carrying capacity or eight times the life of conventional linear bearings
  • Rigid design for minimal deflection, assuring accurate, precise positioning
  • Coefficient of friction as low as 0.001
  • Patented ball control technology which eliminates binding and chatter (stick-slip) common to high friction, plain bushings and sliding-way bearings
  • RoundRail™ advantage which, combined with the advanced MultiTrac® Ball Bushing Bearing® design, eliminates the need for the derating factors commonly required with square rail linear guides
  • Steady state speeds up to 3 m/s and accelerations up to 150 m/sq-s without the use of derating factors
  • Wear-resistant, engineered polymer retainers to reduce inertia and noise levels
  • The extremely rigid MultiTrac® Ball Bushing® reduces deflection and provides twice the load capacity or eight times the travel life of conventional ball bushing bearings
  • The bearing's patented ball control technology eliminates binding and chatter (stick-slip) common with high friction, plain bearings
  • A coefficient of friction as low as 0.001 when replacing high friction plain bearings, Precision Steel Ball Bushing® bearings dramatically improve machine productivity and efficiency
  • For metric class shafting
  • No wipers
  • Not self-aligning
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Thomson_FNYBU06_Catalog.pdf
