Thomson® FNYBUTWN24A THOFNYBUTWN24A

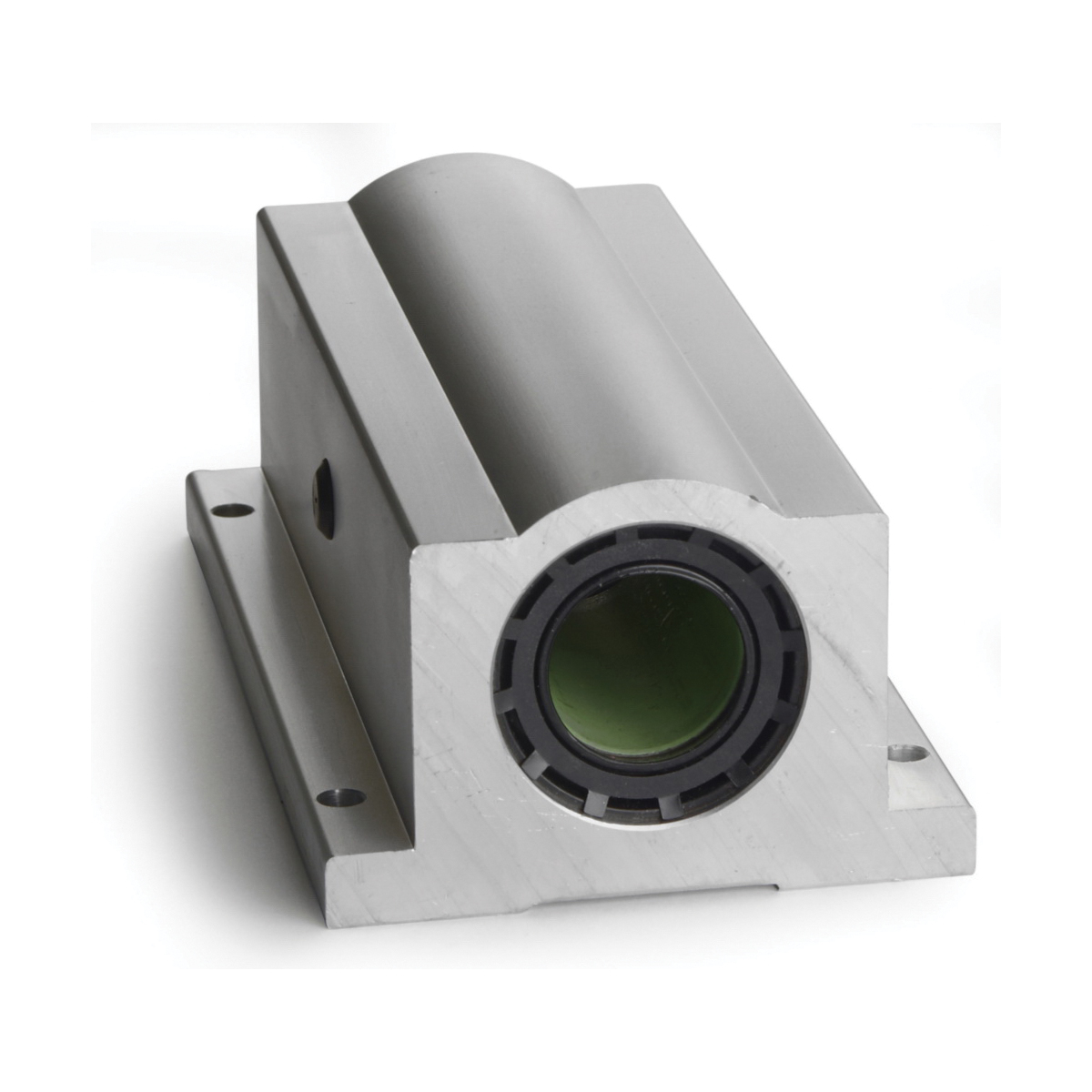

Thomson® FluoroNyliner® Bushing® FNYBUTWN24A FB Series Closed Twin Linear Bearing Pillow Block, 1-1/2 in Dia Shaft, 1-3/4 in Center Line to Base, 4-3/4 in L x 9 in W x 3-1/4 in H
- Manufacturer: Thomson Industries
- Brand Name: Thomson®
- Part Number: THOFNYBUTWN24A
- MPN: FNYBUTWN24A
- UPC: 662486204015
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The FluoroNyliner® Bushing® Bearing is a self-lubricating, plain-type bearing. Its large contact surface area gives it excellent performance in high vibration or impact applications, while its simplified design allows it to run in highly contaminated environments. The FluoroNyliner® can be used with unhardened, highly corrosion resistant shafting, making it ideal for wash-down or submerged environments.
Thomson® FluoroNyliner® Bushing® Linear Bearing Pillow Block, Closed Twin, Series: FB Series, 1-1/2 in Shaft Dia, 1-3/4 in Center Line to Base, 3-1/4 in Height, 4-3/4 in Length, 9 in Width, 14000 lb Static, Steel Bearing, Buna-N Seal, 550 deg F
| Bearing Material | : | Steel |
| Center Line to Base | : | 1-3/4 in |
| Height | : | 3-1/4 in |
| Length | : | 4-3/4 in |
| Load Capacity | : | 14000 lb Static |
| Seal Material | : | Buna-N |
| Series | : | FB Series |
| Shaft Diameter | : | 1-1/2 in |
| Temperature Rating | : | 550 deg F |
| Type | : | Closed Twin |
| Width | : | 9 in |
- High performance in contaminated, wash-down or submerged environments
- Proprietary, self-lubricating, composite bearing liner TEP 950
- Low friction, ideally suited for linear and rotary motion
- Precision machined aluminum sleeve
- Excellent performance in high-vibration and mechanical shock applications
- Corrosion resistant
- Self-aligning
- Integral wiper both ends
- Closed pillow blocks are for end supported shafting
- For class L carbon steel or stainless steel shafting
- Aligning crowned outside diameter
