Thomson® FNYBUPBO20 THOFNYBUPBO20

The FluoroNyliner® Bushing® Bearing is a self-lubricating, plain-type bearing. Its large contact surface area gives it excellent performance in high vibration or impact applications, while its simplified design allows it to run in highly contaminated environments. The FluoroNyliner® can be used with unhardened, highly corrosion resistant shafting, making it ideal for wash-down or submerged environments.

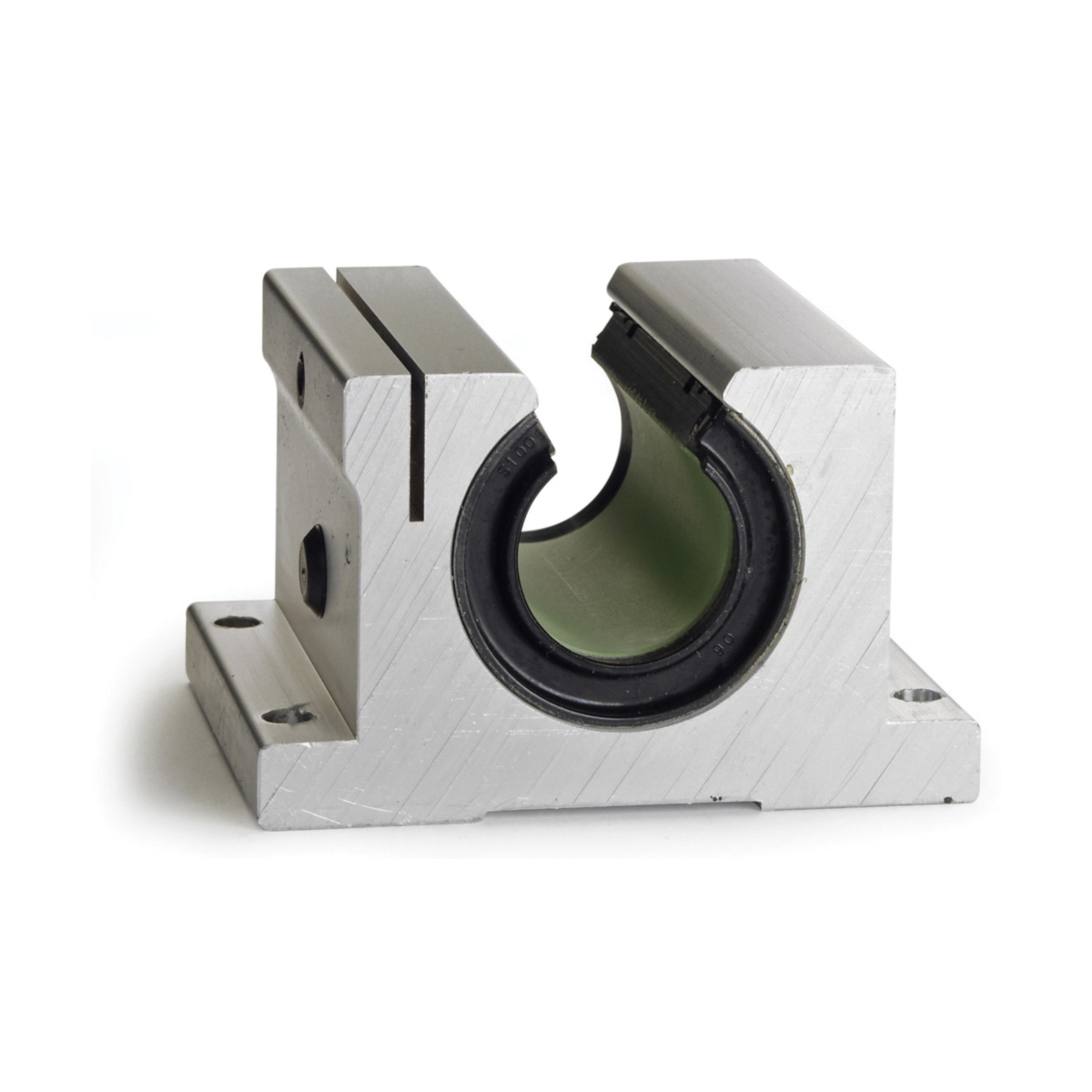

Thomson® FluoroNyliner® Bushing® Linear Bearing Pillow Block, Open Single, Series: FB Series, 1-1/4 in Shaft Dia, 1-1/2 in Center Line to Base, 2-1/2 in Height, 4 in Length, 3.38 in Width, 5100 lb Static, Steel Bearing, Buna-N Seal, 550 deg F

• High performance in contaminated, wash-down or submerged environments
• Proprietary, self-lubricating, composite bearing liner TEP 950
• Low friction, ideally suited for linear and rotary motion
• Precision machined aluminum sleeve
• Excellent performance in high-vibration and mechanical shock applications
• Corrosion resistant
• For continuously supported applications
• Choose compensated inside diameter bearings for non-parallel shafting
• Not self-aligning
• Integral wiper both ends
• Open pillow blocks are for continuous supported shafting
• For class L carbon steel or stainless steel shafting
• Open bearings operating in tension should be dated by 70% and open bearings operating in shear should be dated by 40%

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Thomson_FNYBU06_Catalog.pdf
