Thomson® CD10AAAH-M172 THOCD10AAAH-M172
  1. pin-int

Thomson® CD10AAAH-M172 THOCD10AAAH-M172

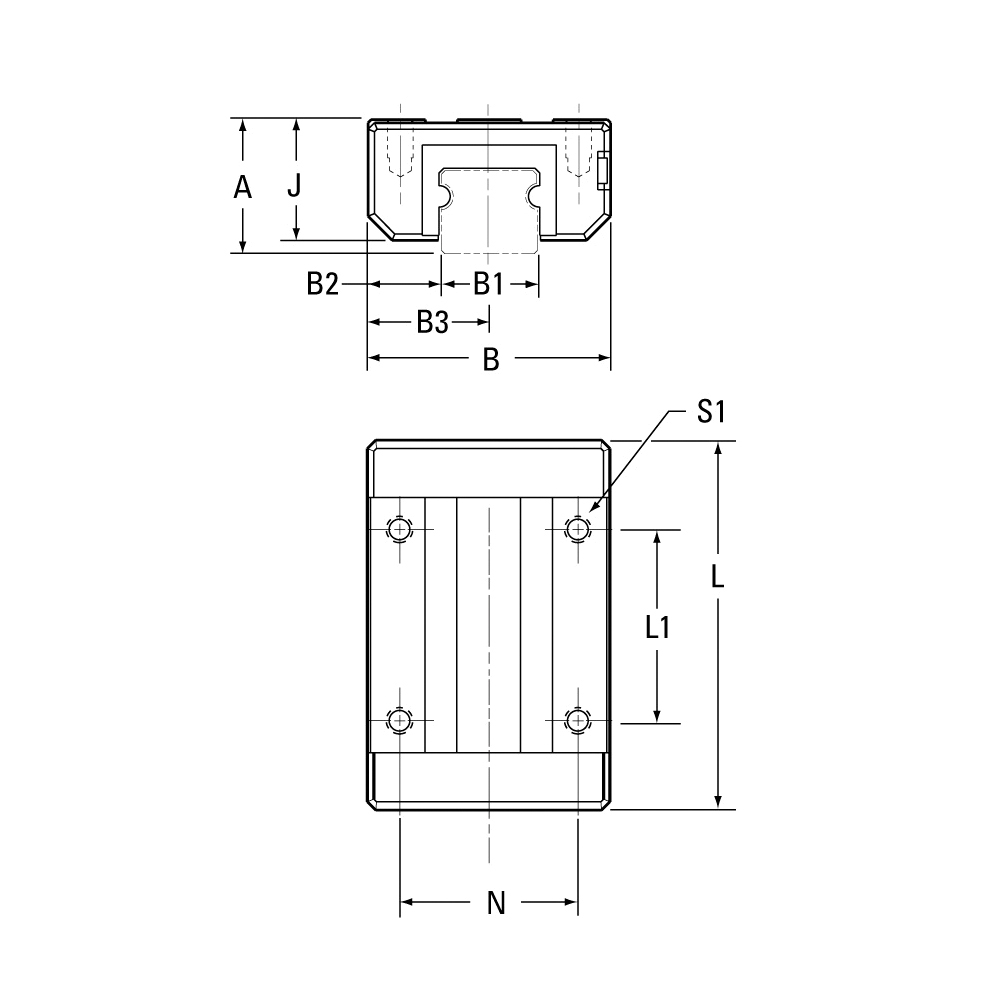

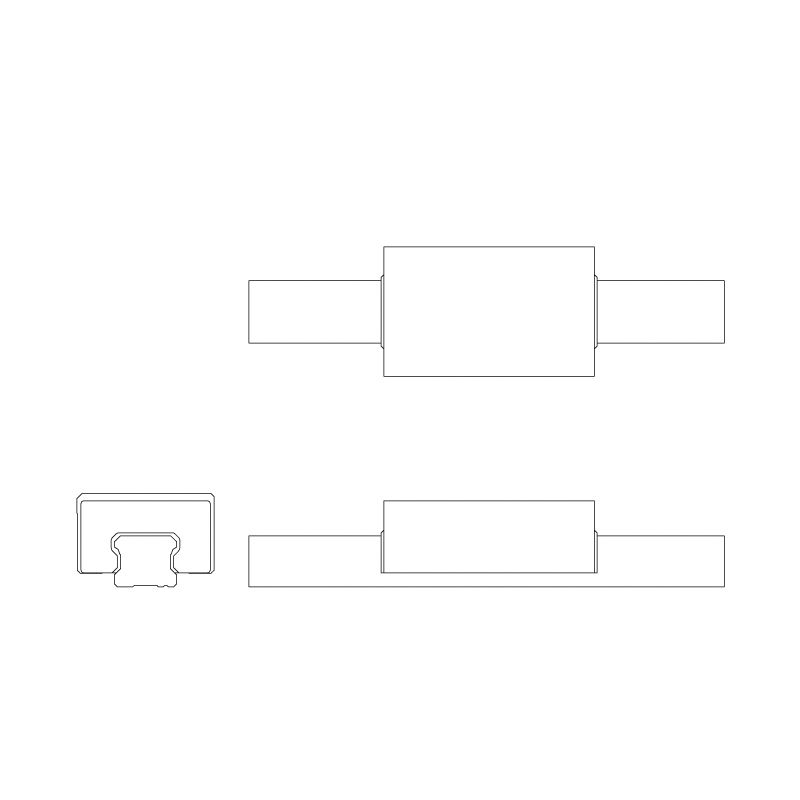

Thomson® CD10AAAH-M172 AccuMini Ball Carriage, Standard Block Style, 10 mm W Rail, 40 mm L x 26 mm W x 13 mm H

  • Manufacturer: Thomson Industries
  • Brand Name: Thomson®
  • Part Number: THOCD10AAAH-M172
  • MPN: CD10AAAH-M172
  • UPC: 662486107903
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Thomson® Ball Carriage, Series: AccuMini, Standard Block Style, 10 mm W Rail, 26 mm Width, 13 mm Height, 40 mm Length, 15 mm Slide Height, M2.5 x 6 mm D Carriage Hole, For Use With: AccuMini Series Profile Rails, 2820 N Dynamic/5300 N Static Load, 5 m/s Maximum, Steel Carriage, 80 deg C

Carriage Hole Size      :      M2.5 x 6 mm D
Carriage Material      :      Steel
Height      :      13 mm
Length      :      40 mm
Load Capacity      :      2820 N Dynamic/5300 N Static
Maximum Speed      :      5 m/s
Rail Size      :      10 mm W
Series      :      AccuMini
Slide Height      :      15 mm
Style      :      Standard Block
Suitable For Use With      :      AccuMini Series Profile Rails
Temperature Rating      :      80 deg C
Width      :      26 mm
  • Full length integral wiper protects critical components from contamination to maximize system life
  • Engineered polymer retainer reduces system inertia and noise
  • Stainless steel ball bearings resist corrosion from harsh environments
  • The AccuMini linear guide series carriages do not have retained balls
  • Removing the carriage from the rail without an arbor will result in the balls falling out
  • Rail sold separately
  • High grade accuracy class
  • Clearance preload
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Thomson_511H20B0ES14_Catalog.pdf
