Thomson® 8125-448-010 DAN8125-448-010
Thomson® 8125-448-010 Type C Non-Preloaded Round Ball Nut, 2-1/2 in Dia Screw, 1/2 in, 2 Circuits, 4 in OD
- Manufacturer: Thomson Industries
- Brand Name: Thomson®
- Part Number: DAN8125-448-010
- Alt Part Number: R-2502
- MPN: 8125-448-010
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price: Call for Price

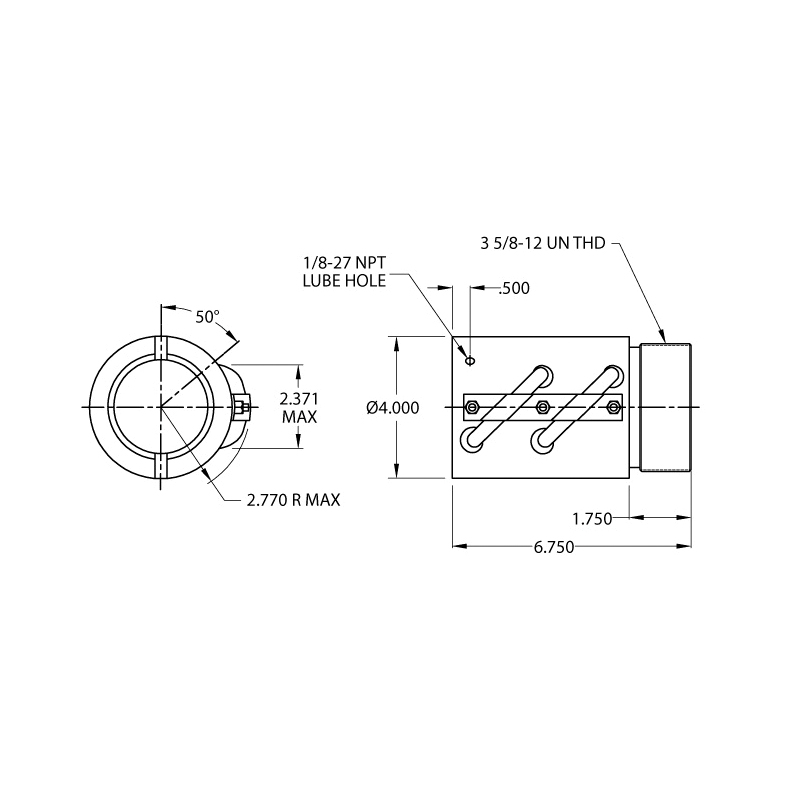

Thomson® Ball Nut, Type C Non-Preloaded Round, 2-1/2 in Screw Diameter, 4 in OD, 2 Circuits, 6-3/4 in Nut Length, 3 5/8-12 UN Thread, Right Thread, 1/2 in Thread Lead, 22981 lb Dynamic/186000 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide
| Finish | : | Black Oxide |
| Load Capacity | : | 22981 lb Dynamic/186000 lb Static |
| Material | : | Steel |
| Number of Circuits | : | 2 |
| Nut Length | : | 6-3/4 in |
| Outside Diameter | : | 4 in |
| Screw Diameter | : | 2-1/2 in |
| Suitable For Use With | : | Precision Rolled Ball Screw |
| Thread Direction | : | Right |
| Thread Lead | : | 1/2 in |
| Thread Size | : | 3 5/8-12 UN |
| Type | : | Type C Non-Preloaded Round |
- Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
- 300 deg F operating temperature
- Nut only, screw sold separately
