Thomson® 8111-448-004 DAN8111-448-004

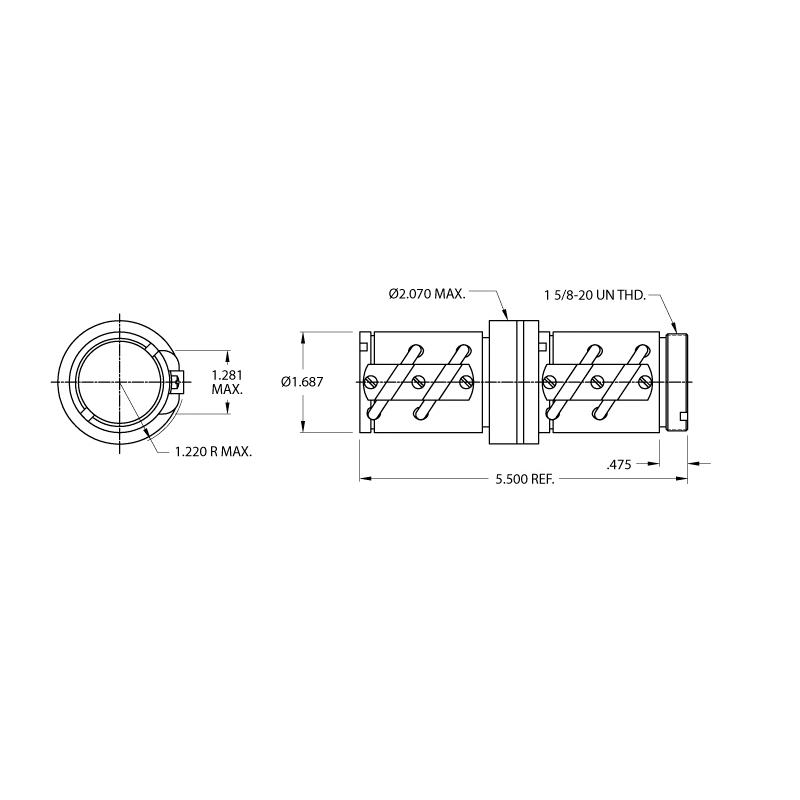

Thomson® 8111-448-004 Type G Double Preloaded Round Ball Nut, 1.15 in Dia Screw, 0.2 in, 2 Circuits, 1.687 in OD

  • Manufacturer: Thomson Industries
  • Brand Name: Thomson®
  • Part Number: DAN8111-448-004
  • MPN: 8111-448-004
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Preloaded ball nuts should be considered to eliminate backlash and increase system stiffness in applications where multi-directional positional accuracy and repeatability are required. Preloaded ball nuts consist of two non-preloaded ball nuts (round or square) joined by an adjustable preload package with springs. This design allows ease of setup and adjust of preload based on application requirements.

Thomson® Ball Nut, Type G Double Preloaded Round, 1.15 in Screw Diameter, 1.687 in OD, 2 Circuits, 5-1/2 in Nut Length, 1-5/8-20 UN Thread, Right Thread, 0.2 in Thread Lead, 2160 lb Dynamic/27310 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel

Load Capacity      :      2160 lb Dynamic/27310 lb Static
Material      :      Steel
Number of Circuits      :      2
Nut Length      :      5-1/2 in
Outside Diameter      :      1.687 in
Screw Diameter      :      1.15 in
Suitable For Use With      :      Precision Rolled Ball Screw
Thread Direction      :      Right
Thread Lead      :      0.2 in
Thread Size      :      1-5/8-20 UN
Type      :      Type G Double Preloaded Round
  • 300 deg F operating temperature
  • Nut only, screw sold separately
