Thomson® 8111-448-002 DAN8111-448-002
Thomson® 8111-448-002 Ball Nut Flange, 1-5/8-20 Thread, 3.2 in OD, 0.49 in THK, Steel
- Manufacturer: Thomson Industries
- Brand Name: Thomson®
- Part Number: DAN8111-448-002
- MPN: 8111-448-002
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price: Call for Price

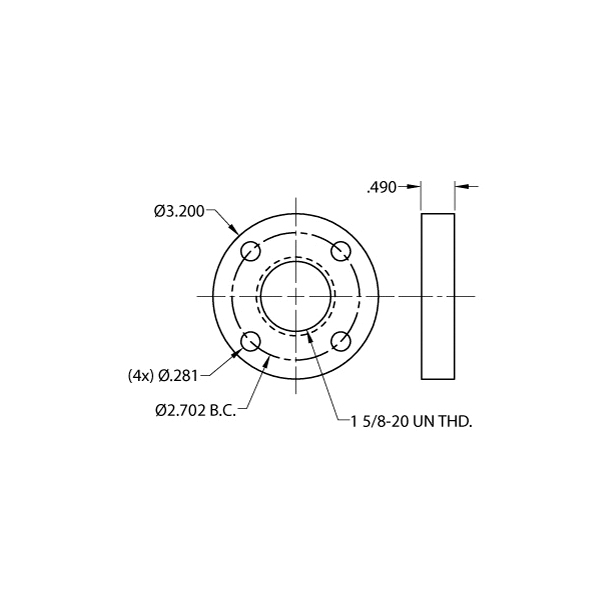

Thomson® Ball Nut Flange, 1-5/8-20, 3.2 in Outside Dia, 0.49 in Thickness, 0.281 in Dia Bolt, 0.281 in Dia Mounting Hole, For Use With: Type C Precision Rolled Ball Screw, Steel
| Bolt Size | : | 0.281 in Dia |
| Material | : | Steel |
| Mounting Hole Size | : | 0.281 in Dia |
| Outside Diameter | : | 3.2 in |
| Suitable For Use With | : | Type C Precision Rolled Ball Screw |
| Thickness | : | 0.49 in |
| Thread Size | : | 1-5/8-20 |
- Flanges provide an easy, low cost method to mount the load square and concentric to the ball screw
