Thomson® 8110-448-022 DAN8110-448-022
Thomson® 8110-448-022 Type B Non-Preloaded Round Ball Nut, 1 in Dia Screw, 1/2 in, 2 Circuits, 1.687 in OD
- Manufacturer: Thomson Industries
- Brand Name: Thomson®
- Part Number: DAN8110-448-022
- MPN: 8110-448-022
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price: Call for Price

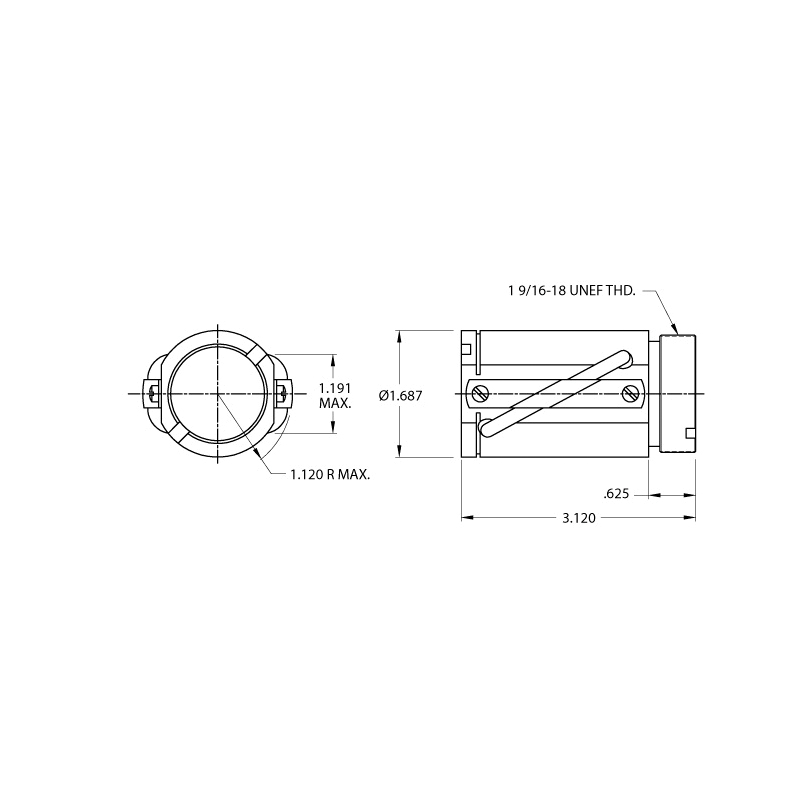

Thomson® Ball Nut, Type B Non-Preloaded Round, 1 in Screw Diameter, 1.687 in OD, 2 Circuits, 3.12 in Nut Length, 1.563-18 UNEF Thread, Right Thread, 1/2 in Thread Lead, 3950 lb Dynamic/32300 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide
| Finish | : | Black Oxide |
| Load Capacity | : | 3950 lb Dynamic/32300 lb Static |
| Material | : | Steel |
| Number of Circuits | : | 2 |
| Nut Length | : | 3.12 in |
| Outside Diameter | : | 1.687 in |
| Screw Diameter | : | 1 in |
| Suitable For Use With | : | Precision Rolled Ball Screw |
| Thread Direction | : | Right |
| Thread Lead | : | 1/2 in |
| Thread Size | : | 1.563-18 UNEF |
| Type | : | Type B Non-Preloaded Round |
- 300 deg F operating temperature
- Nut only, screw sold separately
