Thomson® 8110-101-002 DAN8110-101-002
  1. pin-int

Thomson® 8110-101-002 DAN8110-101-002

Thomson® 8110-101-002 Wiper Kit, 1 in Dia Screw, 1/4 in

  • Manufacturer: Thomson Industries
  • Brand Name: Thomson®
  • Part Number: DAN8110-101-002
  • MPN: 8110-101-002
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Wipers can increase the life and long-term performance of ball bearing screws by preventing most dirt and other foreign matter from entering the ball nut. Wipers are attached via two methods: Type A attaches directly to the ball nut body and flange; and Type B installs into the ends of the ball nut with easy-to-install snap rings kits.

Thomson® Wiper Kit, 1 in Screw Diameter, 1/4 in Thread Lead, For Use With: Type A Precision Rolled Ball Screw

Screw Diameter      :      1 in
Suitable For Use With      :      Type A Precision Rolled Ball Screw
Thread Lead      :      1/4 in
  • Wipers can increase the life and long-term performance of ball bearing screws by preventing most dirt and other foreign matter from entering the ball nut

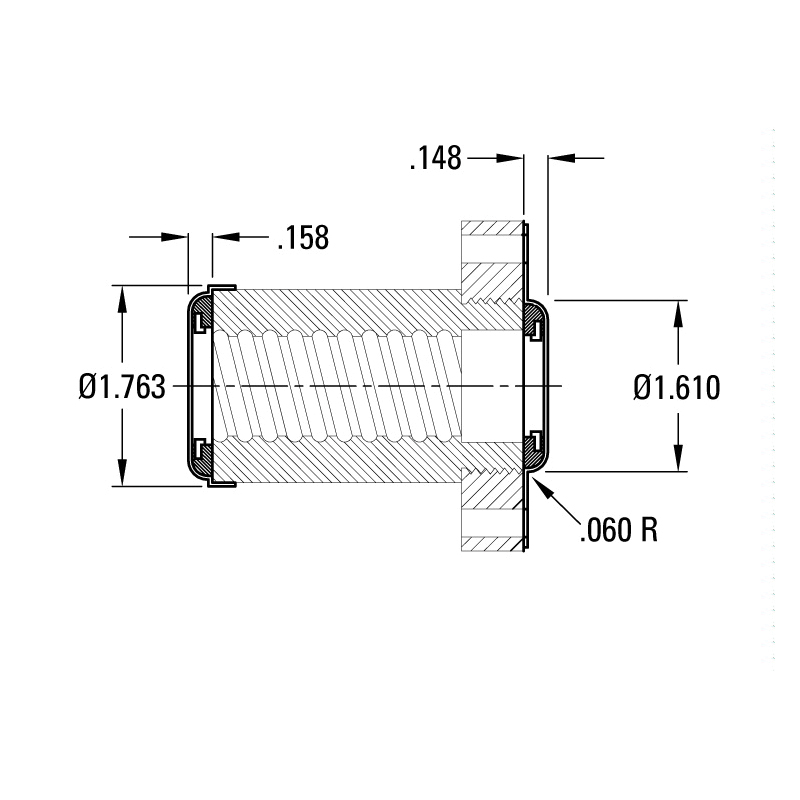

  • End caps attached to the ball nut and flange hold the wipers in position
  • If the application does not use a flange, discard the flange end cap and epoxy the wiper to the end of the ball nut
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Thomson_5703324_Catalog.pdf
