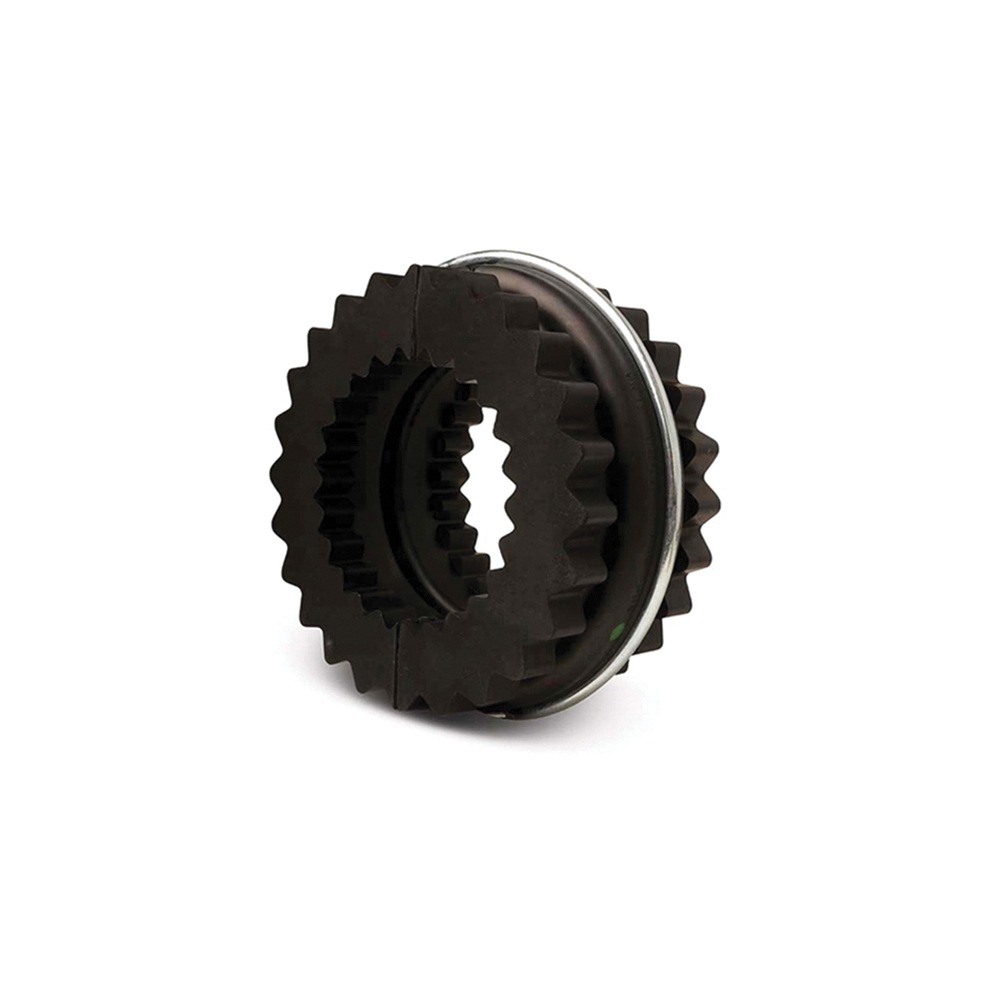

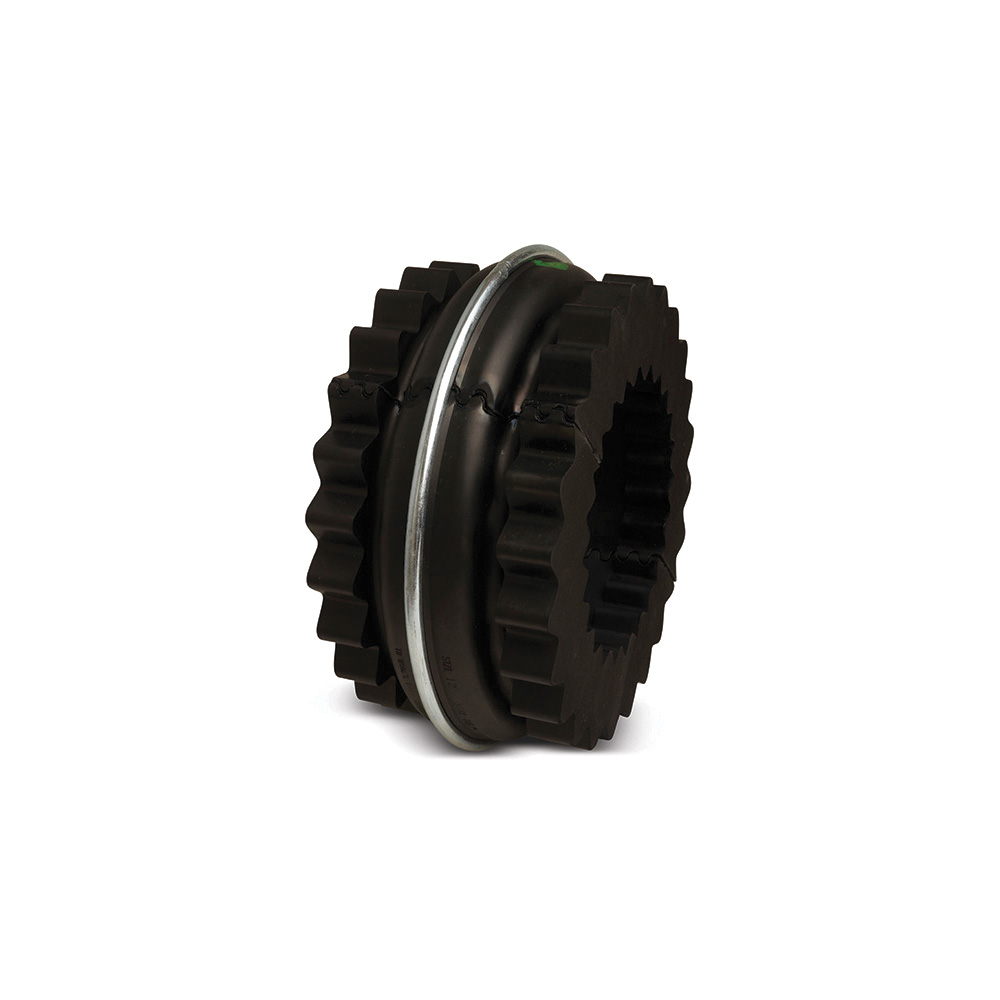

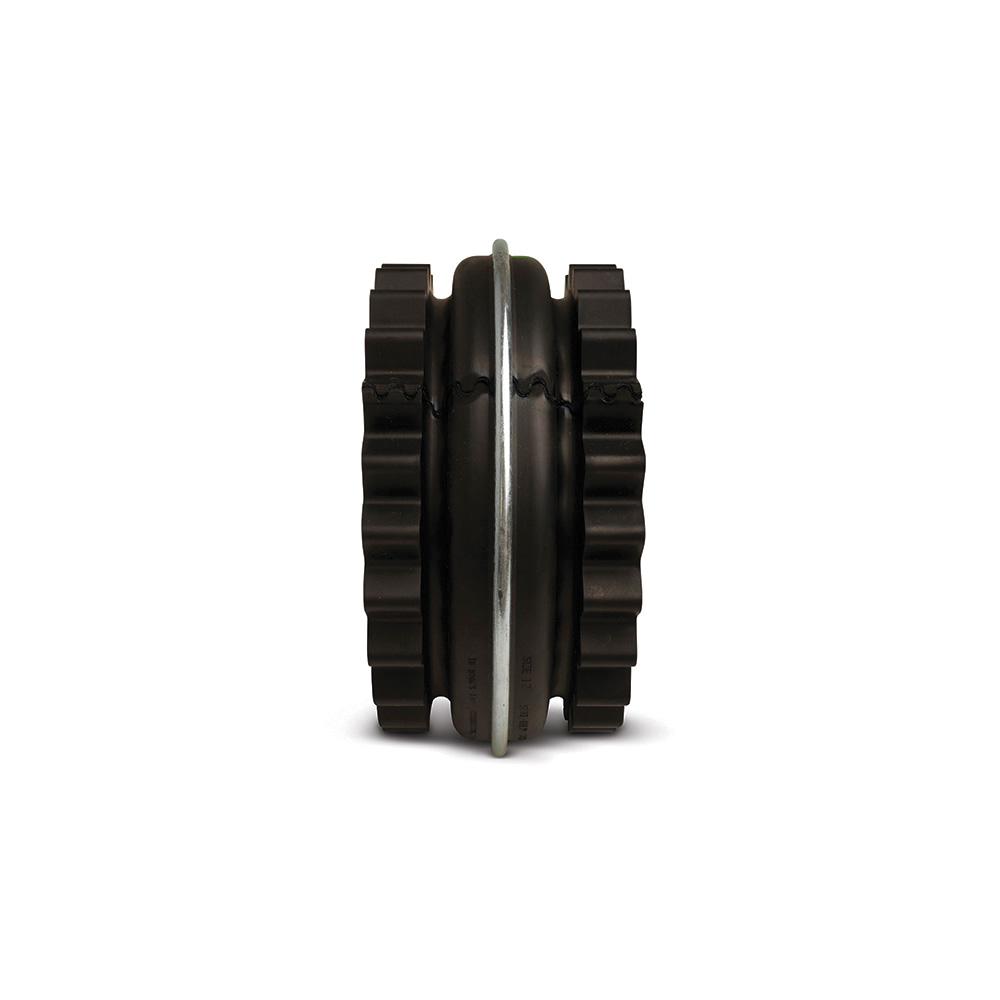

TB Wood's® 7N TBW7N
TB Wood's® Sure-Flex® Plus 7N 2-Piece Split Type N Coupling Sleeve, 7 Coupling, 2-3/16 in L, 4-11/32 in OD, 5250 rpm Max, Neoprene
- Manufacturer: Regal Rexnord
- Brand Name: TB Wood's®
- Part Number: TBW7N
- MPN: 7N
- UPC: 698672920483
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Our new Sure-Flex® Plus EPDM and neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment and end float. With Sure-Flex® couplings, the need for lubrication and maintenance is eliminated.
TB Wood's® Sure-Flex® Plus Coupling Sleeve, 2-Piece Split Type N, 7 Coupling, 2-3/16 in Length, 5/8 to 1-7/8 in ID, 4-11/32 in OD, 940 in-lb Torque, 5250 rpm Maximum, For Use With: Sure-Flex® Plus Flange and Elastomeric Coupling, -0 to 200 deg F, Neoprene, Black with Green Dot
| Coupling Size | : | 7 |
| Finish | : | Black with Green Dot |
| Inside Diameter | : | 5/8 to 1-7/8 in |
| Length | : | 2-3/16 in |
| Material | : | Neoprene |
| Maximum Speed | : | 5250 rpm |
| Outside Diameter | : | 4-11/32 in |
| Suitable For Use With | : | Sure-Flex® Plus Flange and Elastomeric Coupling |
| Temperature Rating | : | -0 to 200 deg F |
| Torque Rating | : | 940 in-lb |
| Type | : | 2-Piece Split Type N |
Instruction/Installation Manual
