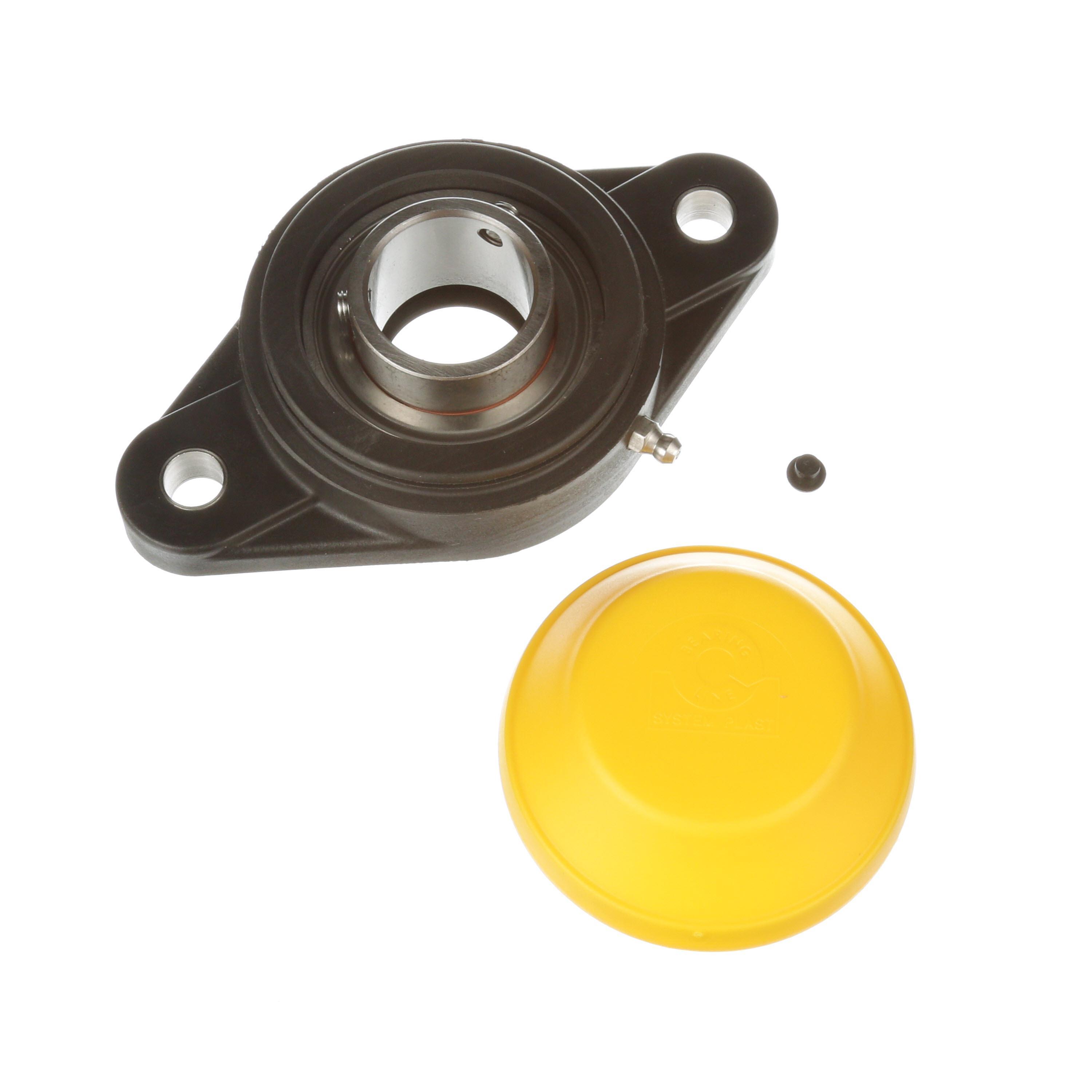

System Plast™ 74207N/SS-EC SYSUCFH207-23SS
System Plast™ 74207N/SS-EC UCFH 207 Standard-Duty Flange Mount Ball Bearing Unit, 1-7/16 in Dia Bore, 5-1/8 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-17/32 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: System Plast™
- Part Number: SYSUCFH207-23SS
- Alt Part Number: UCFH207-23-SS
- MPN: 74207N/SS-EC
- UPC: 787405584792
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price: Call for Price
System Plast™mounted bearing supports are available in polyamide and Nolu® cleanmaterials. These supports are also available with either a 400 series stainless steel insert or a 52100 bearing quality chrome steel insert. They are offered in a variety of housing styles and have an optional end cap and backside shield. This makes them a good solution for wash-down applications.
System Plast™ Flange Mount Ball Bearing Unit, Standard-Duty, Series: UCFH 207, 1-7/16 in Bore, 5-1/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-17/32 in Overall Length/Diameter, 2-19/32 in Overall Depth, 6-27/64 in Overall Height, Set Screw Locking Device, Stainless Steel Bearing, 2600 rpm Maximum, 30 to 180 deg F, Black
| Bearing Material | : | Stainless Steel |
| Bolt Center-to-Center Length | : | 5-1/8 in |
| Bore Diameter | : | 1-7/16 in |
| Finish | : | Black |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 2600 rpm |
| Overall Depth | : | 2-19/32 in |
| Overall Height | : | 6-27/64 in |
| Overall Length/Diameter | : | 3-17/32 in |
| Series | : | UCFH 207 |
| Temperature Rating | : | 30 to 180 deg F |
| Type | : | Standard-Duty |
- Smooth surfaces robust design
- Solid construction
- Stainless lubrication fitting
- H1 food grade grease
- Single lip contact seal
- External fit safety cap
- Ball rolling element
