Standard Locknut TW105 ROSTW105

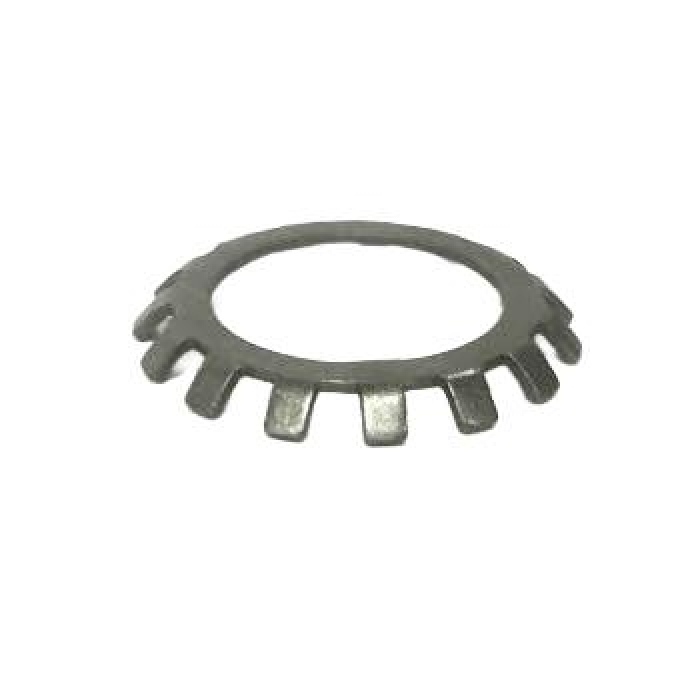

Standard Locknut TW105 TW Series Heavy Duty Lockwasher, Imperial, 0.989 in Nominal, Steel
- Manufacturer: Standard Locknut
- Brand Name: Standard Locknut
- Part Number: ROSTW105
- MPN: TW105
- UPC: 073753305003
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: EACH
-
Price:
This is series of lockwashers are coupled with NHE series heavy duty locknuts. Lockwashwers engage a keyway in a shaft or adapter sleeve slot, then locks the accompanying locknut in position by bending one of the washer tabs into the nut’s outside diameter slots. Features and benefits Fast and simple to use mating component to a locknut. Size range that accommodates most rigorous applications. Simple installation and removal. Standard Locknut sets the industry locknut standard
Standard Locknut, TW105, Lockwasher, Heavy Duty, Series: TW Series, Measurement System: Imperial, 0.989 in Nominal, Steel, 0.897 in ID, 1.703 in OD, 0.052 in Thickness
| Inside Diameter | : | 0.897 in |
| Material | : | Steel |
| Measurement System | : | Imperial |
| Nominal Size | : | 0.989 in |
| Outside Diameter | : | 1.703 in |
| Series | : | TW Series |
| Thickness | : | 0.052 in |
| Type | : | Heavy Duty |
- Fast and simple to use mating component to a locknut
- Simple installation and removal
- TW lockwashers have a 45 deg tang angle for easier locking
- Can be mounted directly to the shaft or on an adapter sleeve
- A new lockwasher should be used each time the corresponding NHE locknut and assembly is reinstalled
- 13 Number of Tangs
