SNR® NU209ET2XC3 NTNNU209EAT2XC3
SNR® NU209ET2XC3 Cylindrical Roller Bearing, 45 mm Dia Bore, 85 mm OD, 1 Row, 19 mm W, 66.5 kN Load
- Manufacturer: NTN
- Brand Name: SNR®
- Part Number: NTNNU209EAT2XC3
- MPN: NU209ET2XC3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SNR NU209ET2XC3 Cylindrical Roller Bearing features 45 mm bore, 85 mm OD, and 19 mm width, Round bore, single-row, and open design, and NU2 series. Key specifications include Hardened Alloy Steel bearing and Nylon cage, 63 kN dynamic and 66.5 kN static load ratings, and 7600 rpm Grease/9000 rpm Oil; temperature -20 to 120 deg C. Cylindrical rollers provide high radial load capacity and rigidity for demanding rotating equipment.
SNR® Cylindrical Roller Bearing, Series: NU2, 45 mm Bore Dia, 85 mm Outside Dia, 1 Row, 19 mm W, Open Closure, 66.5 kN, Hardened Alloy Steel Bearing, Nylon Cage, 7600 rpm Grease/9000 rpm Oil Maximum, -20 to 120 deg C
| Bearing Material | : | Hardened Alloy Steel |
| Bore Diameter | : | 45 mm |
| Cage Material | : | Nylon |
| Closure Type | : | Open |
| Load Capacity | : | 66.5 kN |
| Maximum Speed | : | 7600 rpm Grease/9000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 85 mm |
| Series | : | NU2 |
| Temperature Rating | : | -20 to 120 deg C |
| Width | : | 19 mm |
- Product type: Cylindrical Roller Bearing

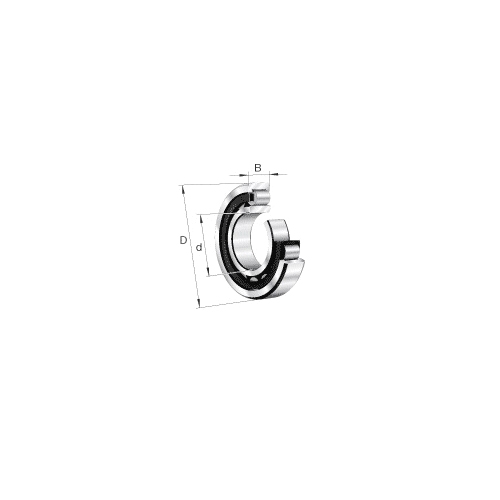

- Dimensions: 45 mm bore x 85 mm outside diameter x 19 mm width
- Design: Single row; separable; plain inner ring and two-rib outer ring; open
- Internal design: E high-capacity design
- Construction: Hardened alloy steel bearing; Nylon cage
- Load ratings: 63 kN dynamic / 66.5 kN static
- Load direction: Radial load only; no axial-load accommodation
- Operating limits: 7,600 rpm (grease) / 9,000 rpm (oil); -20 to 120 °C
- Radial internal clearance: C3
- Tolerance class: ISO 0
