SNR® 7004CVDUJ74 NTN7004CVDUJ74

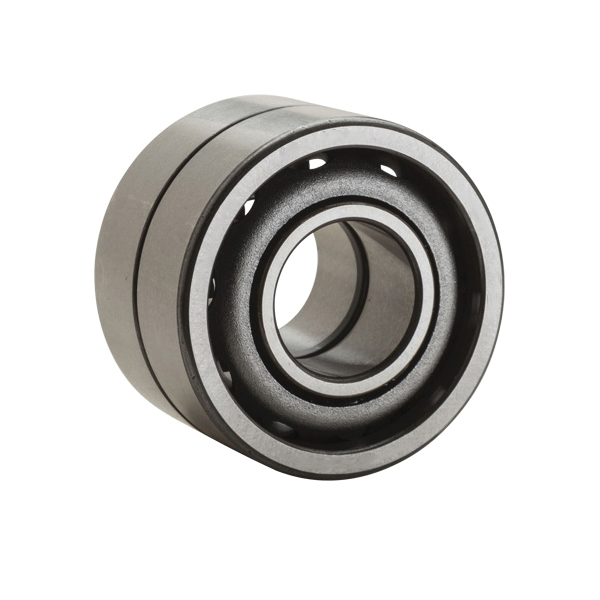

SNR® 7004CVDUJ74 70 Series Round Bore Standard Angular Contact Ball Bearing, 20 mm Dia Bore, 42 mm OD, 2 Rows, 24 mm W, 15 deg, 11800 N Load
- Manufacturer: NTN
- Brand Name: SNR®
- Part Number: NTN7004CVDUJ74
- MPN: 7004CVDUJ74
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SNR® Angular Contact Ball Bearing, Round Bore Standard, Series: 70 Series, 20 mm Bore Dia, 42 mm Outside Dia, 2 Rows, 24 mm W, 15 deg Contact, Open Closure, 11800 N, High Carbon Chrome Steel Bearing, Phenolic Cage, 35000 rpm Grease/55000 rpm Oil Maximum, -40 to 120 deg C
| Bearing Material | : | High Carbon Chrome Steel |
| Bore Diameter | : | 20 mm |
| Cage Material | : | Phenolic |
| Closure Type | : | Open |
| Contact Angle | : | 15 deg |
| Load Capacity | : | 11800 N |
| Maximum Speed | : | 35000 rpm Grease/55000 rpm Oil |
| Number of Rows | : | 2 |
| Outside Diameter | : | 42 mm |
| Series | : | 70 Series |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Round Bore Standard |
| Width | : | 24 mm |
- Can be used alone as a double bearing
- Withstand axial loads in both directions
- Light preload
- Stratified cage
- High performance bearings
- 11800 N dynamic/7100 N static
- Steel ball
- ISO class 4 tolerance rating
