SNR® 6306HT200ZZ NTN6306HT200ZZ
SNR® TOPLINE 6306HT200ZZ 6300 Deep Groove Radial Ball Bearing, 30 mm Dia Bore, 72 mm OD, 1 Rows, 19 mm W, 27.9 kN Load
- Manufacturer: NTN
- Brand Name: SNR®
- Part Number: NTN6306HT200ZZ
- MPN: 6306HT200ZZ
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SNR 6306HT200ZZ TOPLINE 6306HT200ZZ 6300 Deep Groove Radial Ball Bearing features 30 mm bore, 72 mm OD, and 19 mm width and single-row and double-shielded design. Key specifications include High Carbon Chrome Steel bearing and Pressed Steel cage, 27.9 kN dynamic and 15.9 kN static load ratings, and 5800 rpm; temperature -20 to 200 deg C. The deep-groove design supports radial loads plus axial loads in either direction while remaining suitable for high-speed operation.
SNR® TOPLINE Deep Groove Radial Ball Bearing, Series: 6300, 30 mm Bore, 72 mm OD, 1 Rows, 19 mm Width, Double Shield Closure, 27.9 kN Load, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 5800 rpm Maximum, -20 to 200 deg C
| Bearing Material | : | High Carbon Chrome Steel |
| Bore Diameter | : | 30 mm |
| Cage Material | : | Pressed Steel |
| Closure Type | : | Double Shield |
| Load Capacity | : | 27.9 kN |
| Maximum Speed | : | 5800 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 72 mm |
| Series | : | 6300 |
| Temperature Rating | : | -20 to 200 deg C |
| Width | : | 19 mm |
- Product type: Deep Groove Ball Bearing

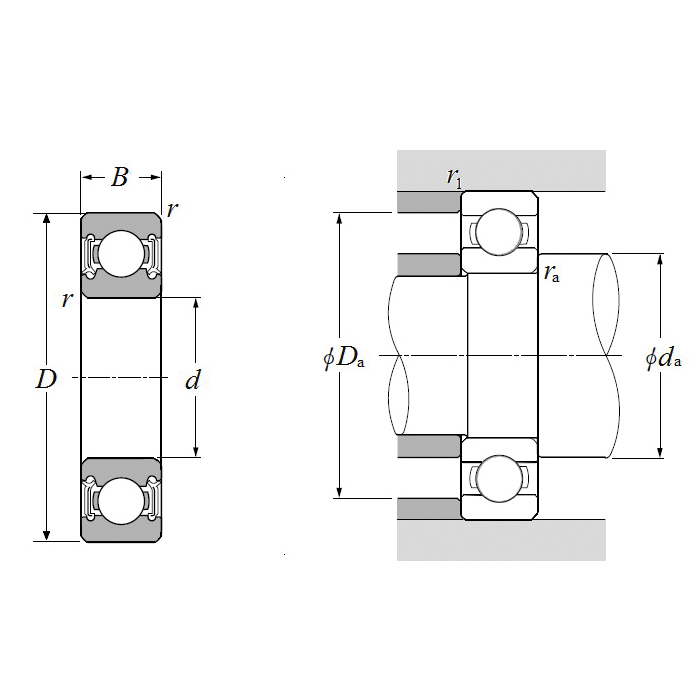

- Dimensions: 30 mm bore x 72 mm outside diameter x 19 mm width
- Design: Single row; double shield
- Sealing: Double shield
- Construction: High-carbon chrome steel bearing; Pressed-steel cage
- Load ratings: 27.9 kN dynamic / 15.9 kN static
- Operating limits: 5,800 rpm; -20 to 200 °C
- Radial internal clearance: C4
