SNR® 2305EEG15 NTN2305EEG15

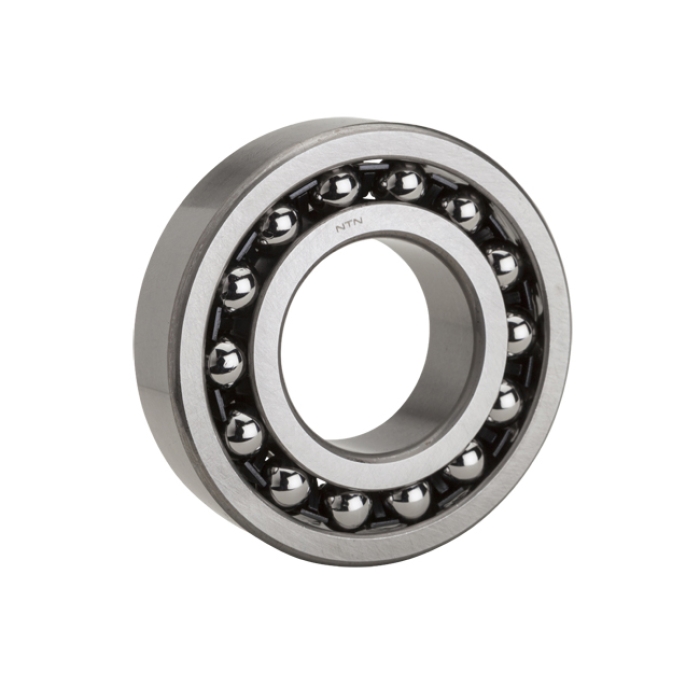

SNR® 2305EEG15 23 Series Self Aligning Bearing, 25 mm Dia Bore, 62 mm Dia Outside, 2 Rows, 24 mm W, 18 kN Dynamic/5 kN Static Load
- Manufacturer: NTN
- Brand Name: SNR®
- Part Number: NTN2305EEG15
- MPN: 2305EEG15
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SNR 2305EEG15 23 Series Self Aligning Bearing features 25 mm bore, 62 mm OD, and 24 mm width and double-row and Sealed design. Key specifications include Polyamide cage, 18 kN dynamic and 5 kN static load ratings, and temperature -20 to 120 deg C.
SNR®, 2305EEG15, Bearing, Self Aligning, Series: 23 Series, 25 mm Bore, 62 mm OD, 2 Rows, 24 mm Width, Sealed Closure, 18 kN Dynamic/5 kN Static Load, Polyamide Cage, -20 to 120 deg C
| Bore Diameter | : | 25 mm |
| Cage Material | : | Polyamide |
| Closure Type | : | Sealed |
| Load Capacity | : | 18 kN Dynamic/5 kN Static |
| Number of Rows | : | 2 |
| Outside Diameter | : | 62 mm |
| Series | : | 23 Series |
| Temperature Rating | : | -20 to 120 deg C |
| Type | : | Self Aligning |
| Width | : | 24 mm |
- Product type: Self-Aligning Ball Bearing
- Dimensions: 25 mm bore x 62 mm outside diameter x 24 mm width
- Design: Double row; Sealed
- Construction: Polyamide cage
- Load ratings: 18 kN dynamic / 5 kN static
- Operating temperature: -20 to 120 °C
