SNR® 22336EF800 NTN22336EF800

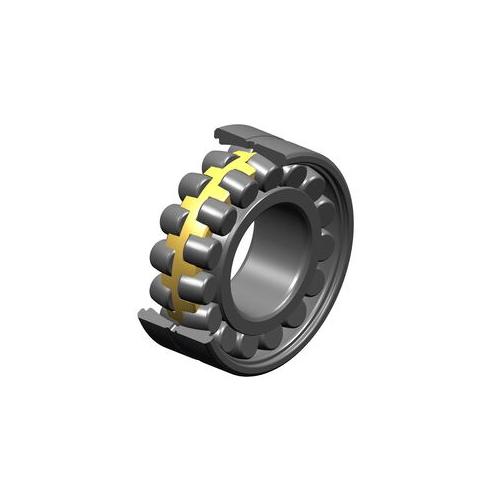

SNR® 22336EF800 Spherical Roller Bearing, 180 mm Dia Bore, 380 mm Dia Outside, 126 mm W, 2420 kN Dynamic/2870 kN Static Load
- Manufacturer: NTN
- Brand Name: SNR®
- Part Number: NTN22336EF800
- MPN: 22336EF800
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SNR 22336EF800 Spherical Roller Bearing features 180 mm bore, 380 mm OD, and 126 mm width. Key specifications include 2420 kN dynamic and 2870 kN static load ratings and temperature -40 to 200 deg C. Its spherical roller geometry accommodates misalignment while providing high radial load capacity and useful axial-load capability.
SNR®, 22336EF800, Roller Bearing, Spherical, 180 mm Bore, 380 mm OD, 126 mm Width, 2420 kN Dynamic/2870 kN Static Load, -40 to 200 deg C
| Bore Diameter | : | 180 mm |
| Load Capacity | : | 2420 kN Dynamic/2870 kN Static |
| Outside Diameter | : | 380 mm |
| Temperature Rating | : | -40 to 200 deg C |
| Type | : | Spherical |
| Width | : | 126 mm |
- Product type: Shaker Screen Spherical Roller Bearing
- Dimensions: 180 mm bore x 380 mm outside diameter x 126 mm width
- Design: Cylindrical bore; double row; open
- Internal design: F800 shaker-screen specification
- Cage: Machined-brass cage
- Load ratings: 2,420 kN dynamic / 2,870 kN static
- Operating temperature: -40 to 200 °C
- Radial internal clearance: C4
Specification Sheet
