SNR® 22318EKF800 NTN22318EKF800

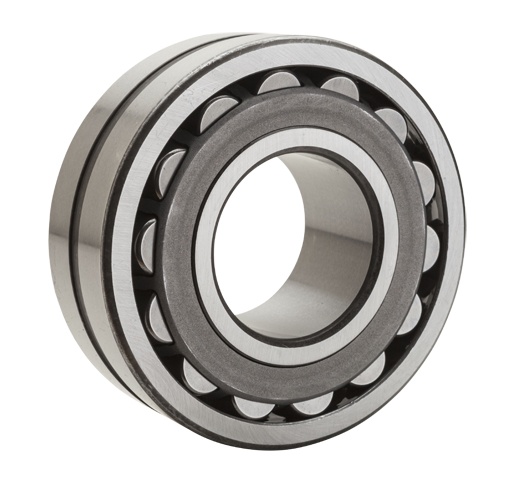

SNR® 22318EKF800 ULTAGE® 223 Spherical Roller Bearing, 90 mm Dia Bore, 190 mm OD, 2 Rows, 64 mm W, 668 kN Load
- Manufacturer: NTN
- Brand Name: SNR®
- Part Number: NTN22318EKF800
- MPN: 22318EKF800
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SNR 22318EKF800 ULTAGE 223 Spherical Roller Bearing features 90 mm bore, 190 mm OD, and 64 mm width, Tapered bore, double-row, and open design, and ULTAGE® 223 series. Key specifications include Through Hardened Steel bearing and Machined Brass Alloy cage, 668 kN dynamic and 652 kN static load ratings, and 1900 rpm Grease/2500 rpm Oil; temperature -40 to 200 deg C. Its spherical roller geometry accommodates misalignment while providing high radial load capacity and useful axial-load capability.
SNR® Spherical Roller Bearing, Series: ULTAGE® 223, 90 mm Bore Dia, 190 mm Outside Dia, 2 Rows, 64 mm W, Open Closure, 668 kN, Through Hardened Steel Bearing, Machined Brass Alloy Cage, 1900 rpm Grease/2500 rpm Oil Maximum, -40 to 200 deg C
| Bearing Material | : | Through Hardened Steel |
| Bore Diameter | : | 90 mm |
| Cage Material | : | Machined Brass Alloy |
| Closure Type | : | Open |
| Load Capacity | : | 668 kN |
| Maximum Speed | : | 1900 rpm Grease/2500 rpm Oil |
| Number of Rows | : | 2 |
| Outside Diameter | : | 190 mm |
| Series | : | ULTAGE® 223 |
| Temperature Rating | : | -40 to 200 deg C |
| Width | : | 64 mm |
- Product type: Shaker Screen Spherical Roller Bearing
- Series: ULTAGE® 223
- Dimensions: 90 mm bore x 190 mm outside diameter x 64 mm width
- Design: Tapered bore; double row; open
- Internal design: F800 shaker-screen specification
- Construction: Through-hardened steel bearing; Machined-brass cage
- Load ratings: 668 kN dynamic / 652 kN static
- Operating limits: 1,900 rpm (grease) / 2,500 rpm (oil); -40 to 200 °C
- Radial internal clearance: C4
- Tapered bore ratio: 1:12
