SNR® 2208EEG15 NTN2208EEG15

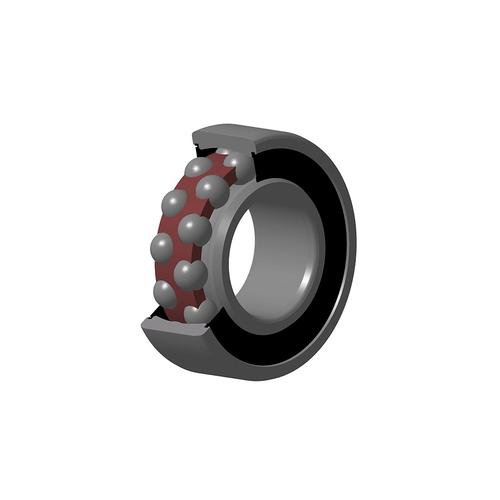

SNR® 2208EEG15 22 Series Self Aligning Bearing, 40 mm Dia Bore, 80 mm Dia Outside, 2 Rows, 23 mm W, 19.2 kN Dynamic/6.5 kN Static Load
- Manufacturer: NTN
- Brand Name: SNR®
- Part Number: NTN2208EEG15
- MPN: 2208EEG15
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SNR®, 2208EEG15, Bearing, Self Aligning, Series: 22 Series, 40 mm Bore, 80 mm OD, 2 Rows, 23 mm Width, Sealed Closure, 19.2 kN Dynamic/6.5 kN Static Load, Polyamide Cage, -20 to 120 deg C
| Bore Diameter | : | 40 mm |
| Cage Material | : | Polyamide |
| Closure Type | : | Sealed |
| Load Capacity | : | 19.2 kN Dynamic/6.5 kN Static |
| Number of Rows | : | 2 |
| Outside Diameter | : | 80 mm |
| Series | : | 22 Series |
| Temperature Rating | : | -20 to 120 deg C |
| Type | : | Self Aligning |
| Width | : | 23 mm |
Specification Sheet
